J11W-16T brass wire-button globe valve is made of high quality brass material, the valve stem is designed and manufactured as a concealed stem, and the connection method is internal threaded connection, which has the advantages of good sealing performance, reliable quality and so on. Globe valve is also called cut-off valve, in the valve is a very widely used one of the products. The product mainly has a valve body, valve cover, valve flap, valve stem, in the pipeline plays a role in the cut-off and cut-off. The product has good corrosion resistance and oxidation resistance, good material flexibility and excellent sealing performance. In addition to the handwheel and nut, other parts are produced by brass material finishing, with oxidation resistance, rust, generally applicable to plumbing. The medium can only overflow from one side to the other, can not do the role of two-way flow. Widely used in all kinds of building plumbing pipeline use.
Product Parameters
Product Model | J11W-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

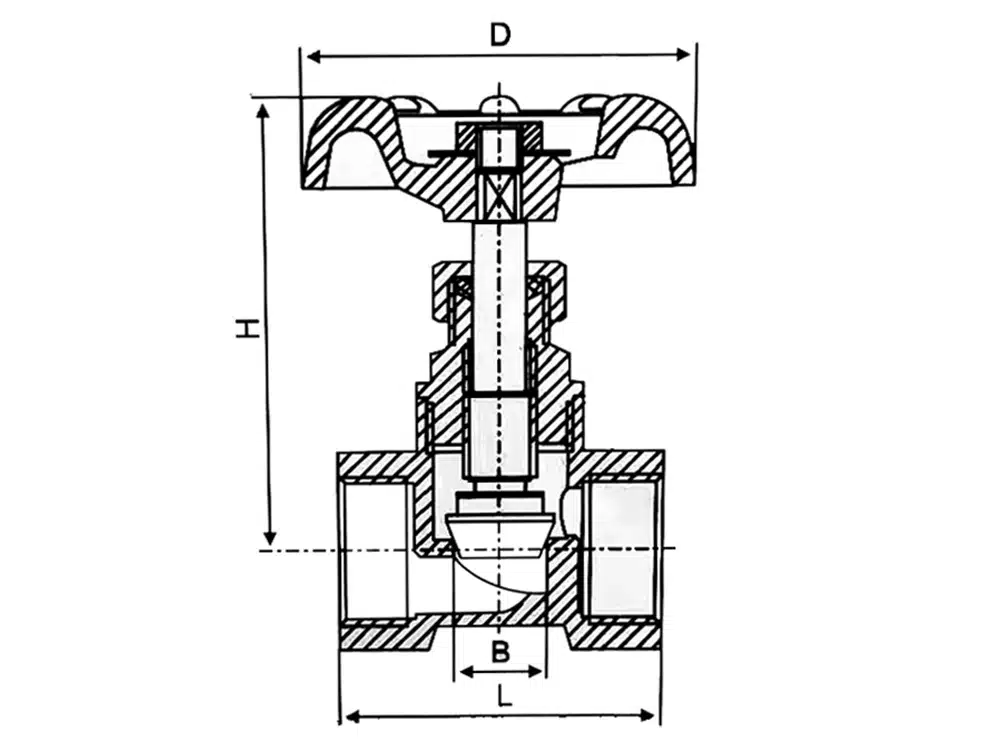

Product Size Reference
Nominal Diameter | SIZE | L | B | H | D |
DN15 | 1/2 | 45 | 13 | 63 | 53 |
DN20 | 3/4 | 50 | 16 | 65.4 | 53 |
DN25 | 1 | 60 | 18 | 71.7 | 57.5 |
DN32 | 1-1/4 | 67 | 26 | 90 | 72 |
DN40 | 1-1/2 | 75 | 29 | 100 | 78 |
DN50 | 2 | 88 | 33 | 112.5 | 97 |
