The A28H spring-loaded full-lift safety valve is suitable for equipment or pipelines handling media such as air, steam, water, and nitrogen-hydrogen mixtures at operating temperatures ≤200°C.
Working Principle
When the pressure in the equipment and pipeline exceeds the permissible value, the valve automatically opens and then discharges the full amount; when the pressure drops to the specified value, the valve automatically closes to ensure the safe operation of the equipment and pipeline.
Product Parameters
Product Model | A28H-16 |
Valve Body Material | Gray Cast Iron |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Steam, Air, etc. |
Applicable Temperature | ≤200℃ |

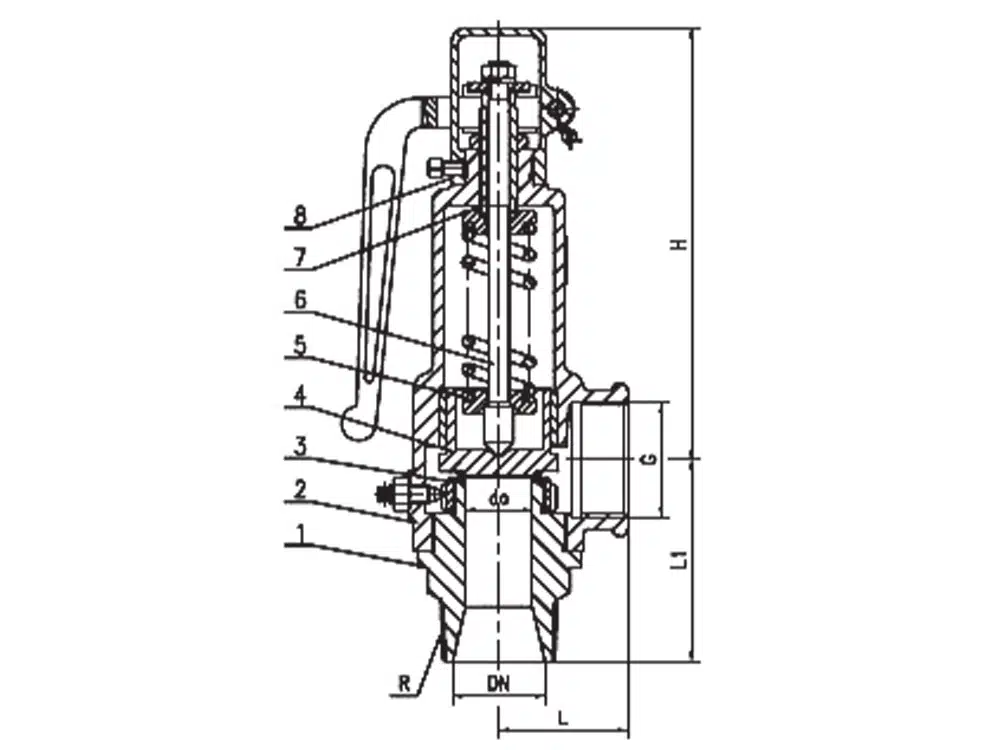

Product Size Reference
Nominal Diameter | do | R | L | L1 | G | ≈H |
DN15 | 10 | 1/2 | 37 | 65 | 3/4 | 196 |
DN20 | 12 | 3/4 | 40 | 70 | 1 | 215 |
DN25 | 15 | 1 | 45 | 78 | 1-1/4 | 233 |
DN32 | 20 | 1-1/4 | 60 | 90 | 1-1/2 | 304 |
DN40 | 25 | 1-1/2 | 67 | 105 | 2 | 325 |
DN50 | 32 | 2 | 76 | 115 | 2-1/2 | 346 |
DN65 | 40 | 2-1/2 | 110 | 145 | 3 | 372 |
