Q41H-16C metal hard seal flange ball valve is a kind of valve to do cutting off, distributing and changing the flow direction of the medium. The valve seat adopts plate spring loaded metal sealing structure, easy to open and close at high temperature. The ball and seat are treated with special hardening, and the sealing surface is not abraded. Widely used in urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection and other fields.
Product Features
Q41H-16C metal hard seal flange ball valve has good sealing performance, high temperature resistance, abrasion resistance, impact resistance, light switch, long service life and so on.
Product Parameters
Product Model | Q41H-16C |
Valve Body Material | Cast Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Steam, Oil, etc. |
Applicable Temperature | ≤325℃ |

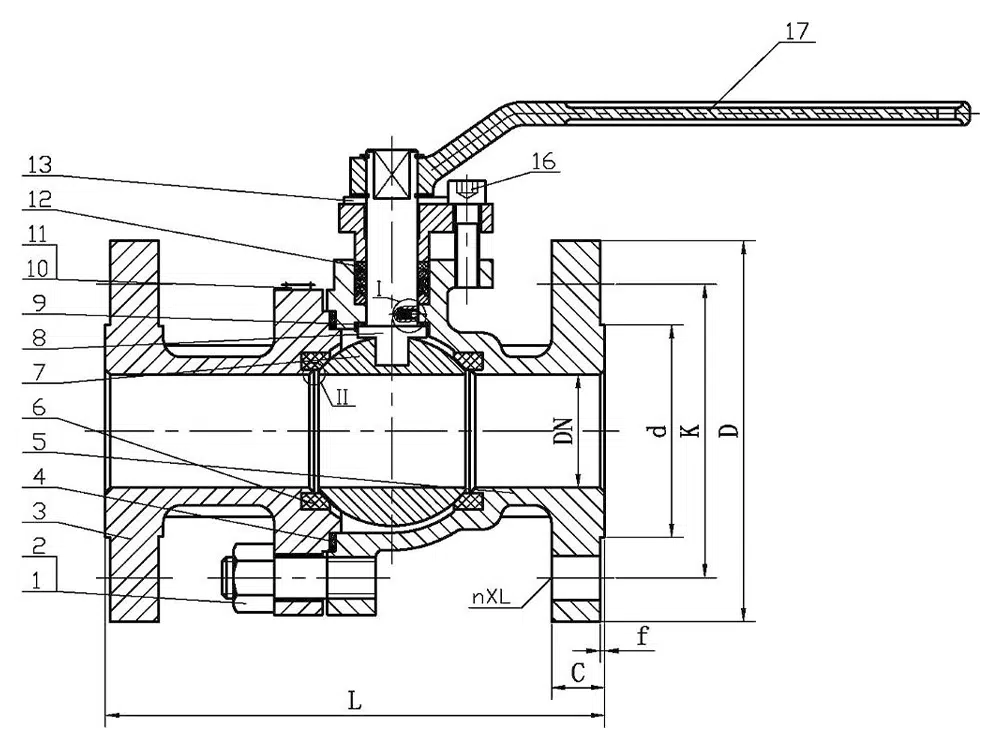

Product Size Reference
Nominal Diameter | L | D | K | d | C | f | nXL |
DN15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 |
DN20 | 140 | 105 | 75 | 55 | 14 | 2 | 4-14 |
DN25 | 150 | 115 | 85 | 65 | 14 | 2 | 4-14 |
DN32 | 165 | 135 | 100 | 78 | 16 | 2 | 4-18 |
DN40 | 180 | 145 | 110 | 85 | 16 | 3 | 4-18 |
DN50 | 200 | 160 | 125 | 100 | 16 | 3 | 4-18 |
DN65 | 220 | 180 | 145 | 120 | 18 | 3 | 4-18 |
DN80 | 250 | 195 | 160 | 135 | 20 | 3 | 8-18 |
DN100 | 280 | 215 | 180 | 155 | 20 | 3 | 8-18 |
DN125 | 320 | 245 | 210 | 185 | 22 | 3 | 8-18 |
DN150 | 360 | 285 | 240 | 210 | 24 | 3 | 8-23 |
DN200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-23 |
DN250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-23 |
