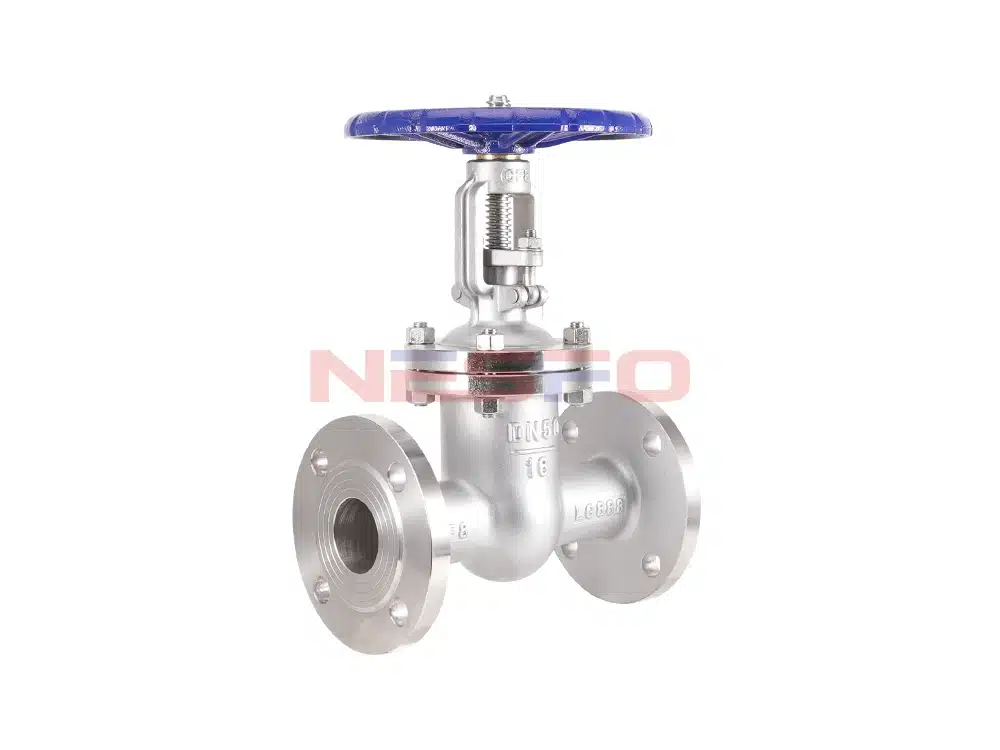

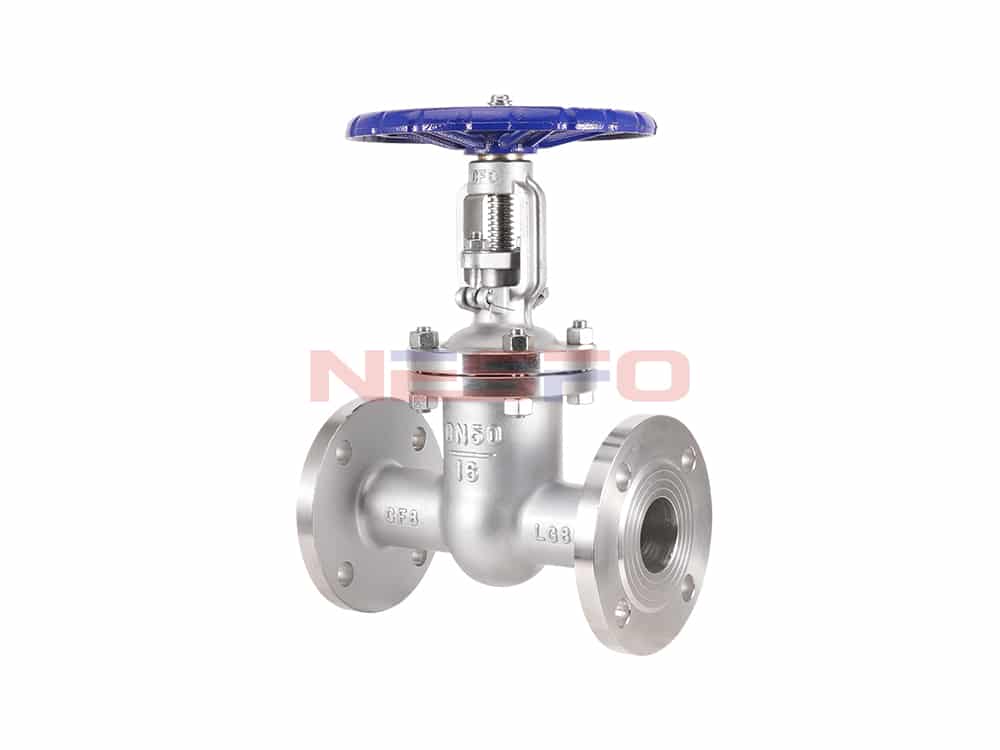

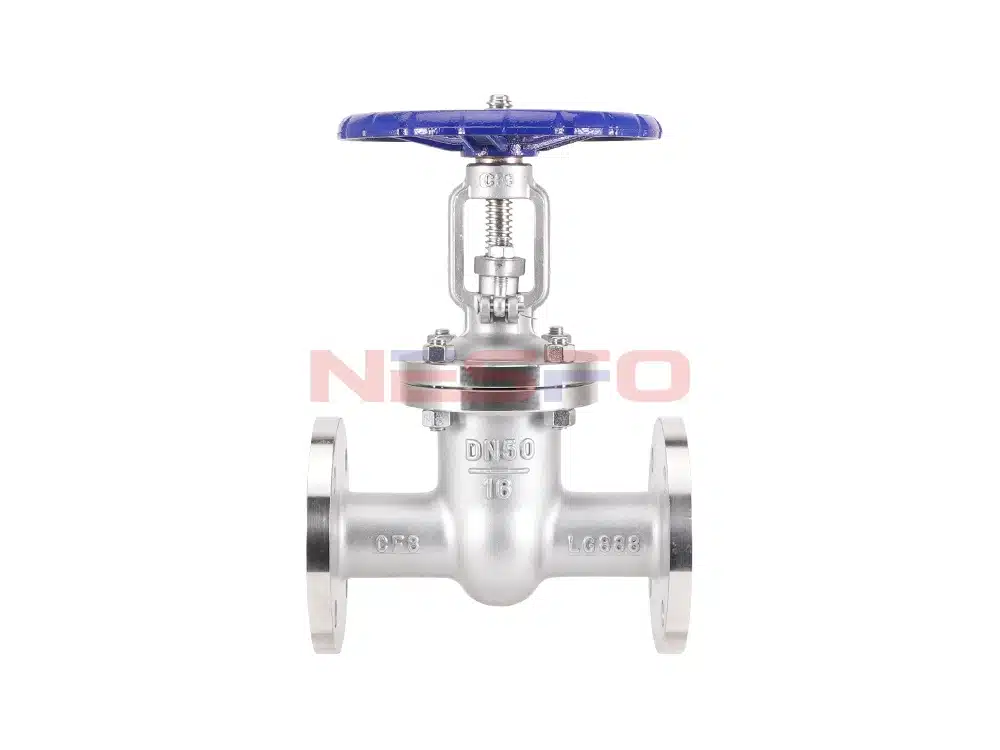

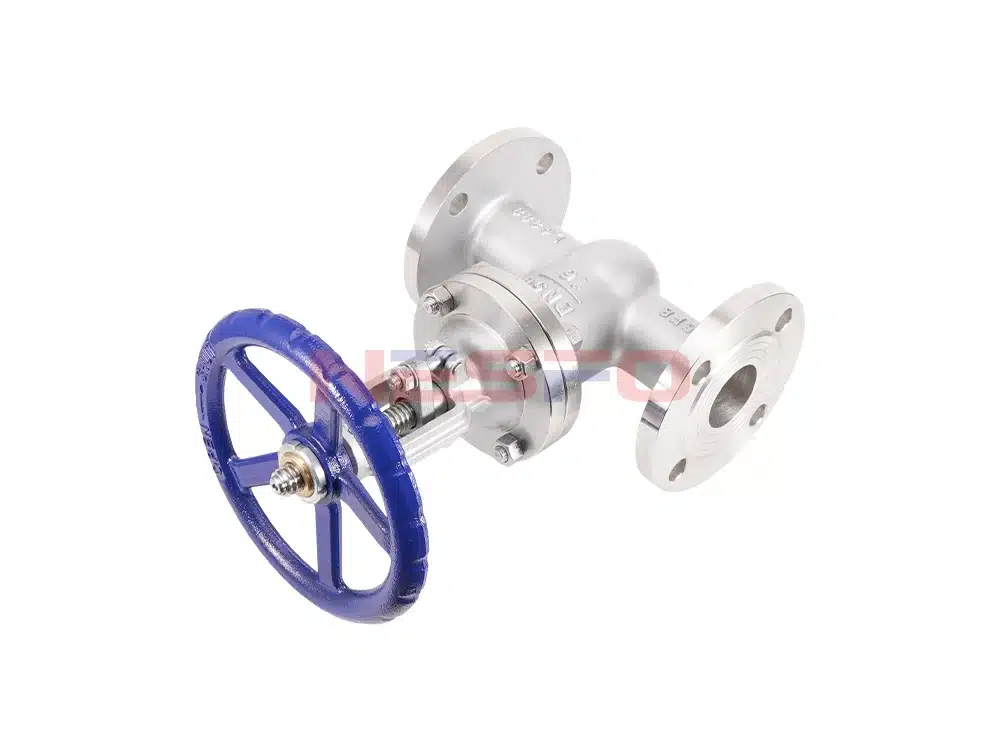

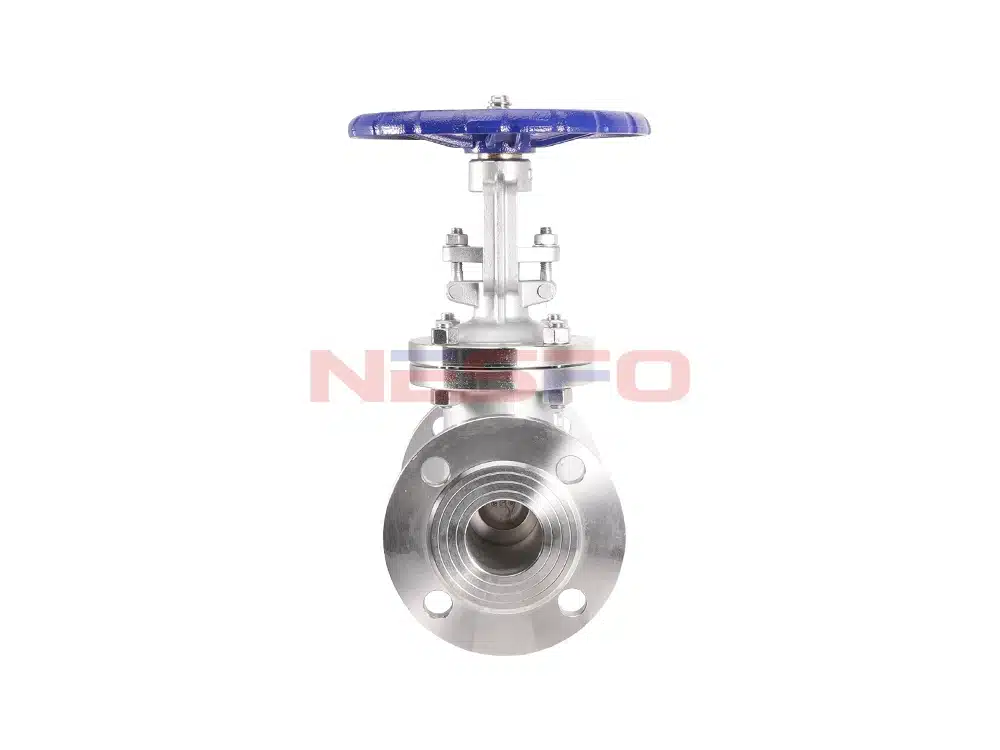

Z41W-16P stainless steel flange gate valve opening and closing member is the gate, the gate movement direction is perpendicular to the direction of the fluid, the gate valve can only be used for full open and full closed, can not be used for regulation and throttling. Gate has two sealing surfaces, the two sealing surfaces form a wedge; stainless steel flange gate valve is a kind of gate valve, the valve body material requirements are relatively high generally 304, 316 and other material options. Widely used in chemical, ship, medicine, food, power energy, metallurgy and other industries.
Product Parameters
Product Model | Z41W-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Steam, Oil, etc. |
Applicable Temperature | ≤150°C |

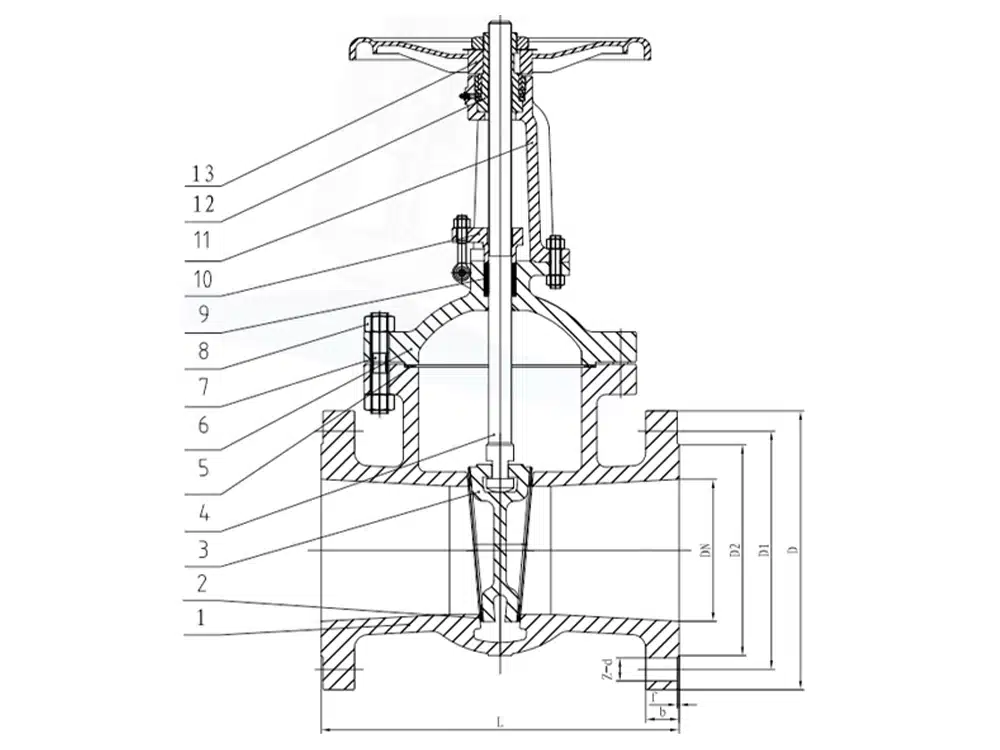

Product Size Reference
Nominal Diameter | L | D | D1 | D2 | b | f | z-d |
DN15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 |
DN20 | 150 | 105 | 75 | 55 | 14 | 2 | 4-14 |
DN25 | 160 | 115 | 85 | 65 | 14 | 2 | 4-14 |
DN32 | 180 | 135 | 100 | 78 | 16 | 2 | 4-18 |
DN40 | 200 | 145 | 110 | 85 | 16 | 3 | 4-18 |
DN50 | 250 | 160 | 125 | 100 | 16 | 3 | 4-18 |
DN65 | 265 | 180 | 145 | 120 | 18 | 3 | 4-18 |
DN80 | 280 | 195 | 160 | 135 | 20 | 3 | 8-18 |
DN100 | 300 | 215 | 180 | 155 | 20 | 3 | 8-18 |
DN125 | 325 | 245 | 210 | 185 | 22 | 3 | 8-18 |
DN150 | 350 | 280 | 240 | 210 | 24 | 3 | 8-23 |
DN200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-23 |
DN250 | 450 | 405 | 355 | 320 | 30 | 3 | 12-25 |
DN300 | 500 | 460 | 410 | 375 | 30 | 4 | 12-25 |
DN350 | 550 | 520 | 470 | 435 | 34 | 4 | 16-25 |
DN400 | 600 | 580 | 525 | 485 | 36 | 4 | 16-30 |
DN450 | 650 | 640 | 585 | 545 | 40 | 4 | 20-30 |
DN500 | 700 | 705 | 650 | 608 | 44 | 4 | 20-34 |
