J41H-40C forged steel disconnecting valve is mainly used to connect or cut off the medium in the pipeline, generally not used to regulate the flow.J41H-40C forged steel disconnecting valve is widely used in urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, environmental protection and other fields.
Product Features
- Simple in structure, it is relatively easy to manufacture and maintain.
- Short working stroke, brief opening and closing time.
- Excellent sealing performance, minimal friction between sealing surfaces, and extended service life.
Product Parameters
Product Model | J41H-40C |
Valve Body Material | A105N Forged Steel |
Nominal Pressure | ≤4.0Mpa |
Applicable Media | Water, Steam, Oil, etc. |
Applicable Temperature | ≤250°C |

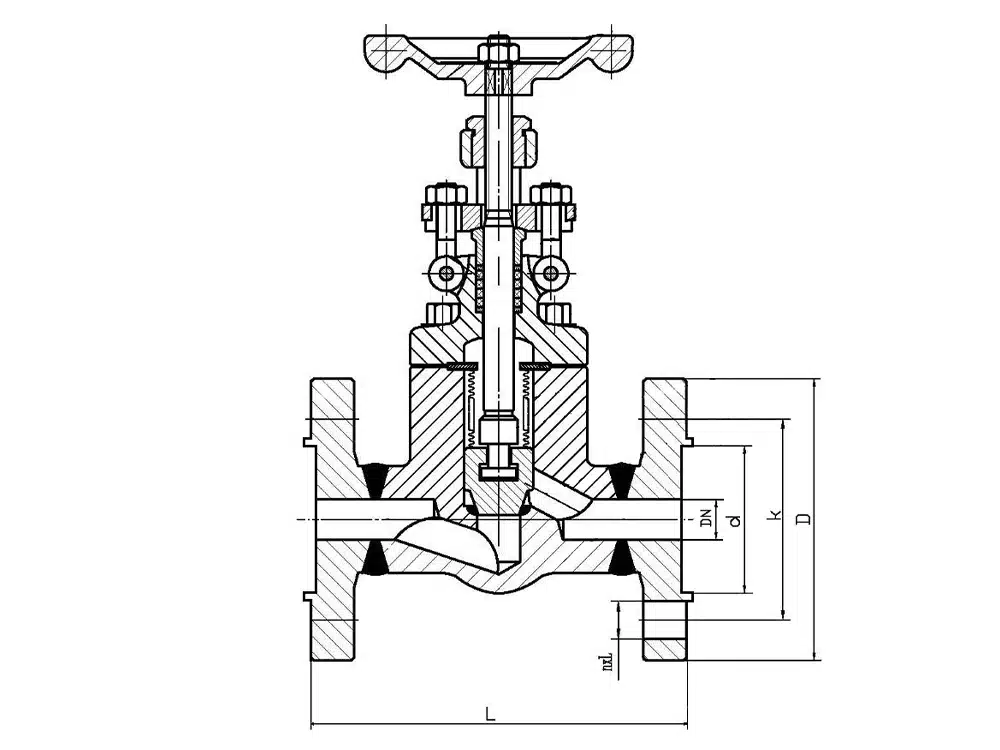

Product Size Reference
DN | L | D | d | K | n×L |
15 | 130 | 95 | 40 | 65 | 4-14 |
20 | 150 | 105 | 51 | 75 | 4-14 |
25 | 160 | 115 | 58 | 85 | 4-14 |
32 | 180 | 140 | 66 | 100 | 4-18 |
40 | 200 | 150 | 76 | 110 | 4-18 |
50 | 230 | 165 | 88 | 125 | 4-18 |
