Y filter is a product for removing mechanical impurities in filtered water, which can be used in hot water heating, refrigeration and air-conditioning systems and other types of production process equipment, hot and cold water pipes or acid-resistant and other corrosive media pipes to remove dirt. It is especially suitable for installation at the import and export of fan coiler units to protect the equipment from impurities, wear and tear, siltation and clogging, ensure the normal operation of the equipment and extend the service life of the equipment.
Product Features

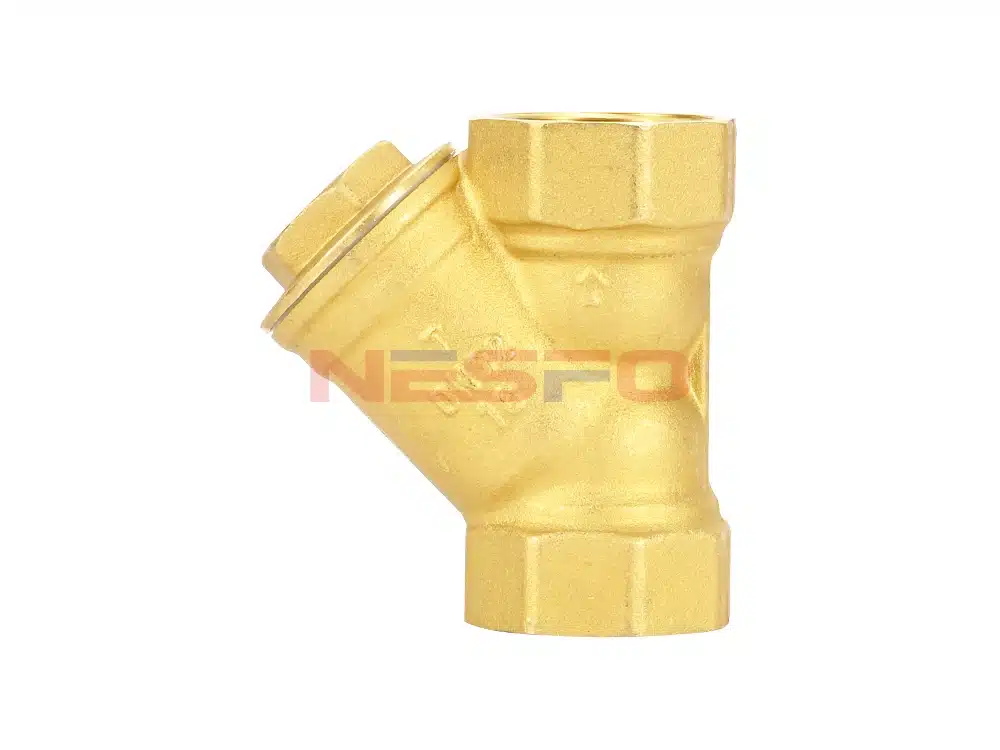

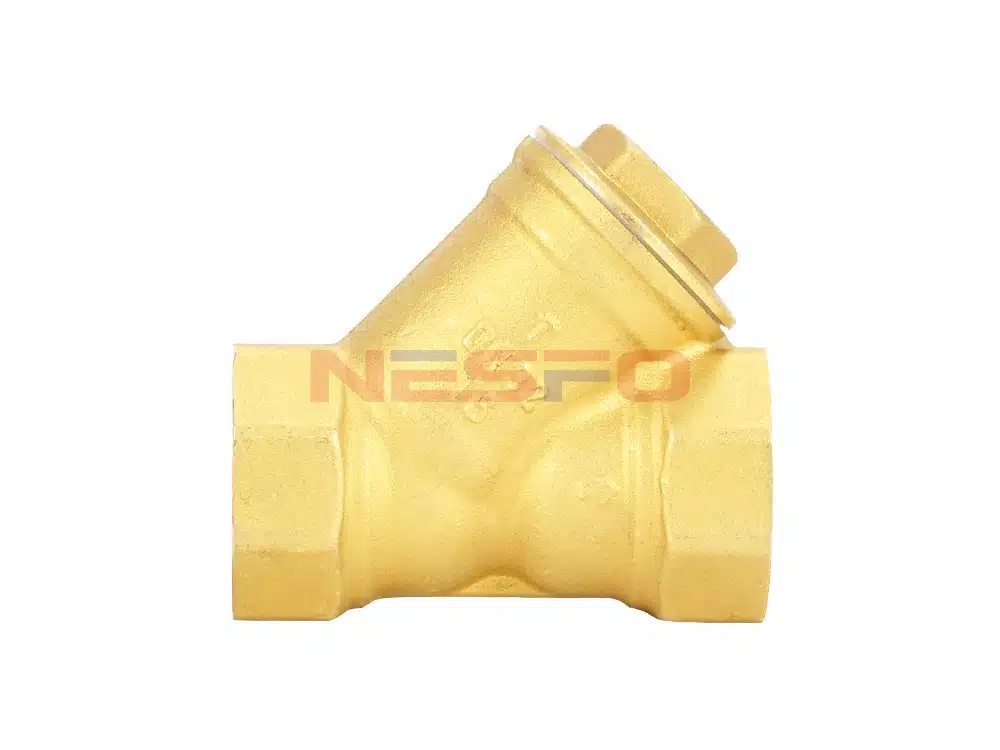

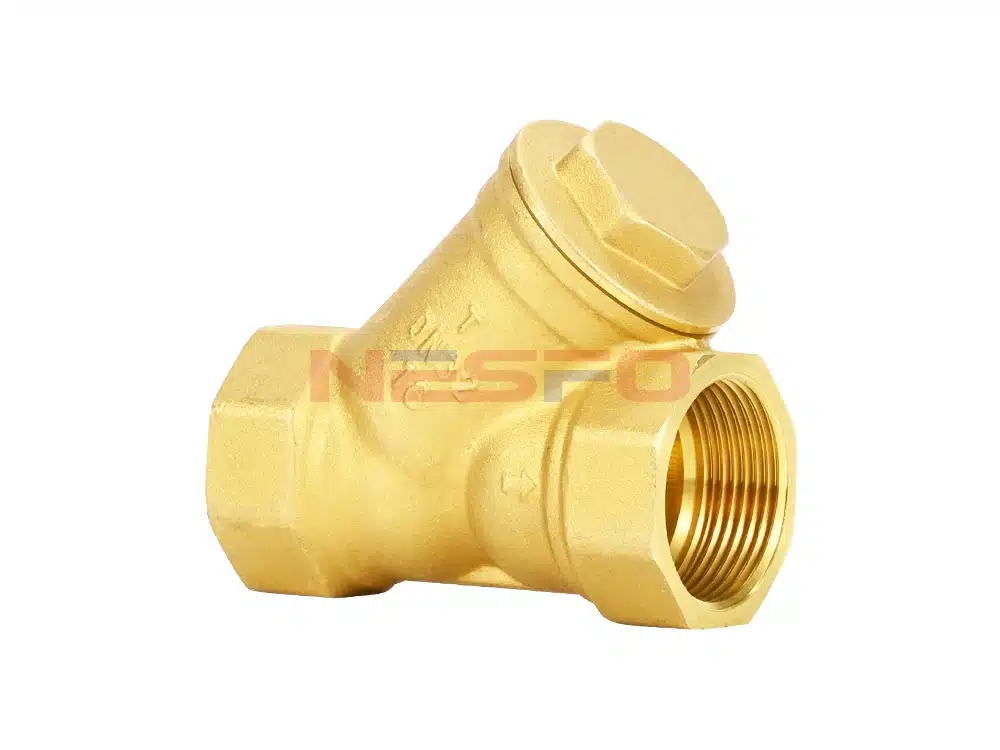

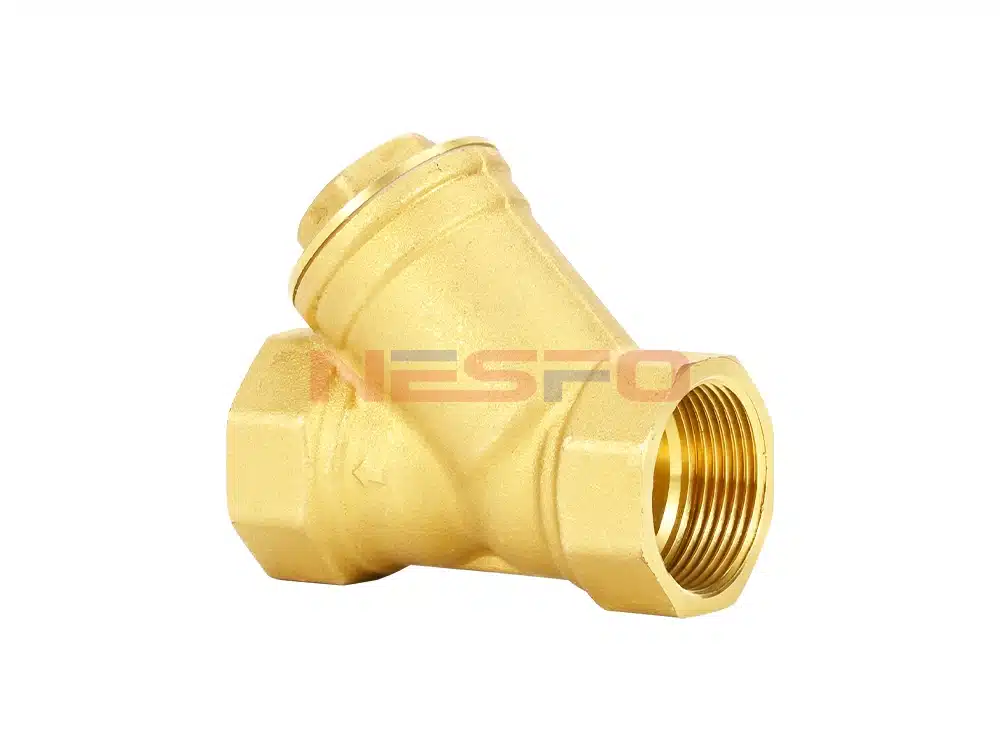

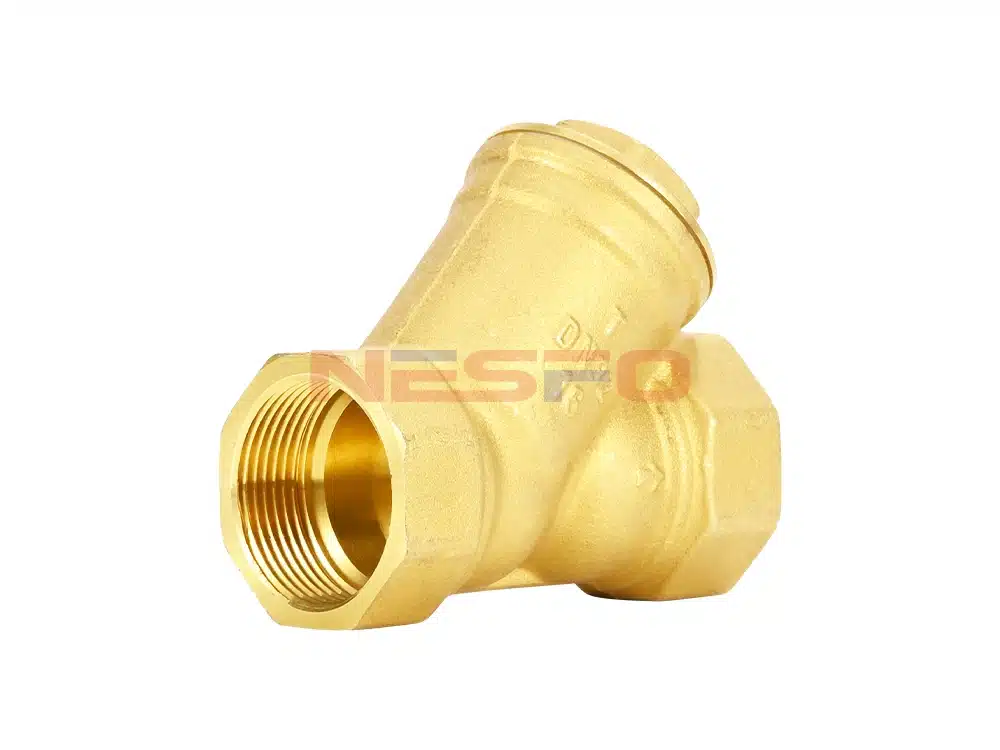

The valve body of this filter is made of brass, with small size, easy installation and durable. The filter adopts 20-80 mesh stainless steel wire mesh, with large filter area, small resistance, strong dirt-removing ability, long interval between cleaning the filter, convenient cleaning, no need to install bypass pipe, and can be cleaned from time to time, and when cleaning, close the front and rear valves, pull out the filter element, and reset the filter by removing the impurities.
Product Parameters
Product Model | GL11W-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

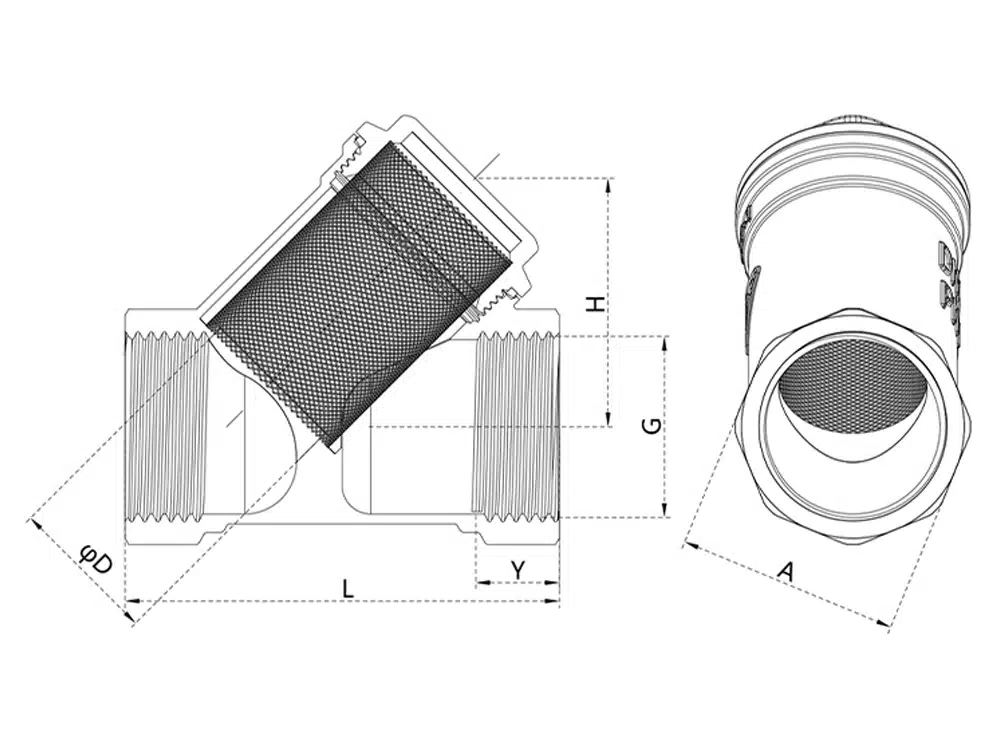

Product Size Reference
G | L | Y | φD | H | A |
DN15 | 47.5 | 11.5 | 15 | 30.5 | 26 |
DN20 | 61 | 12 | 19 | 38 | 32 |
DN25 | 65 | 12 | 26 | 44 | 39 |
DN32 | 80 | 16 | 31 | 53 | 48 |
DN40 | 88 | 17 | 34 | 60 | 54 |
DN50 | 104 | 21 | 44 | 67 | 67 |
