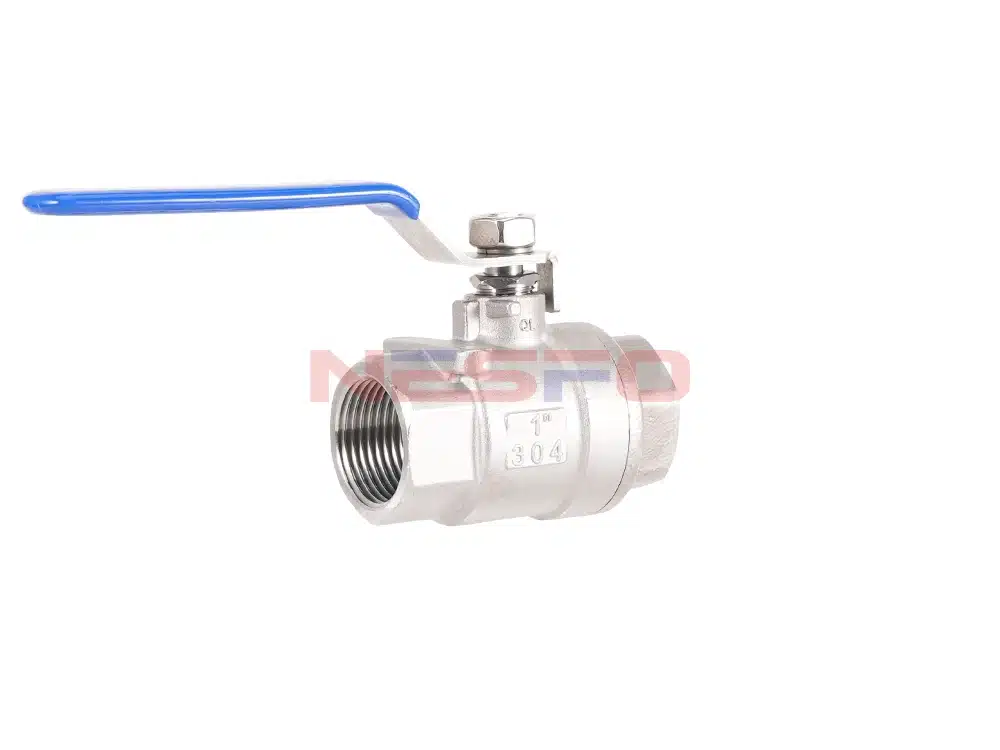

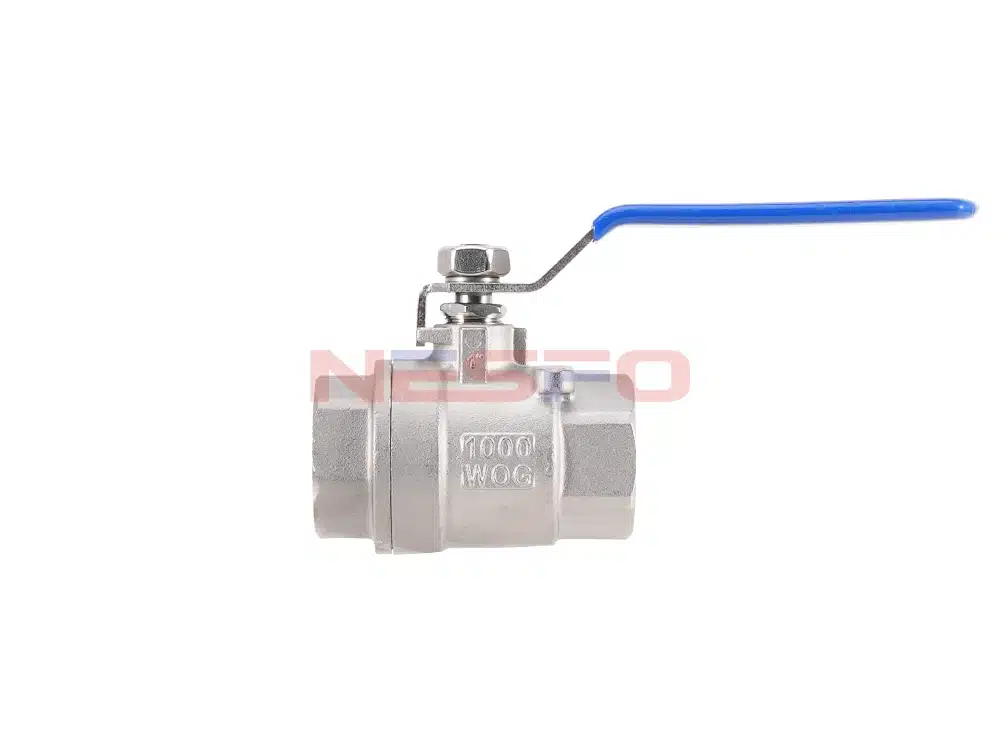

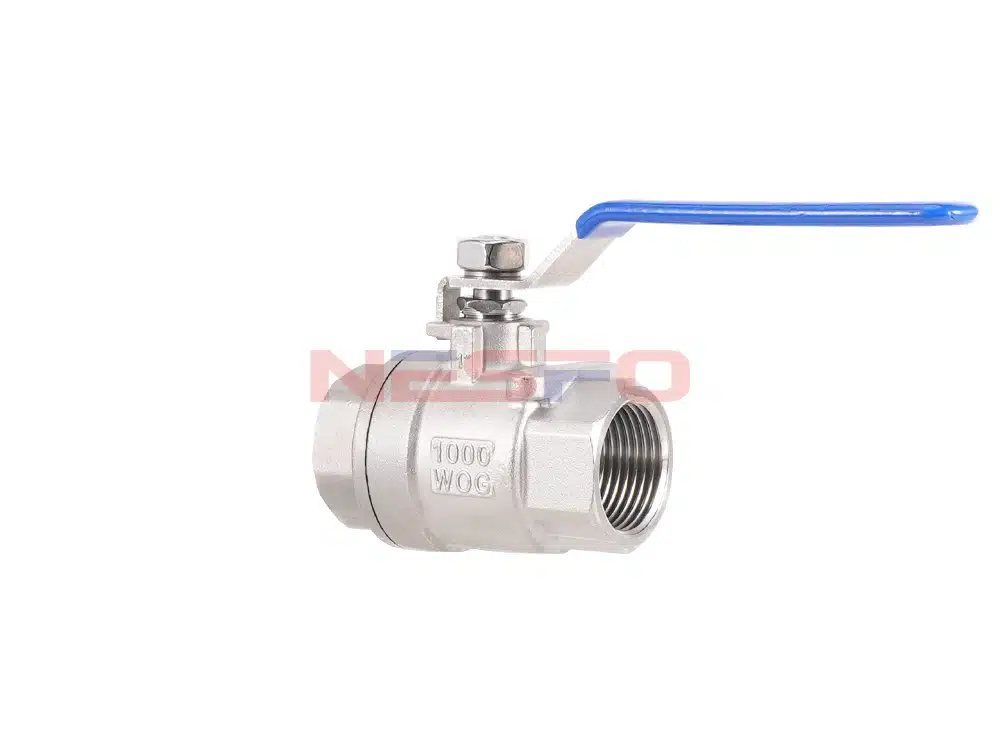

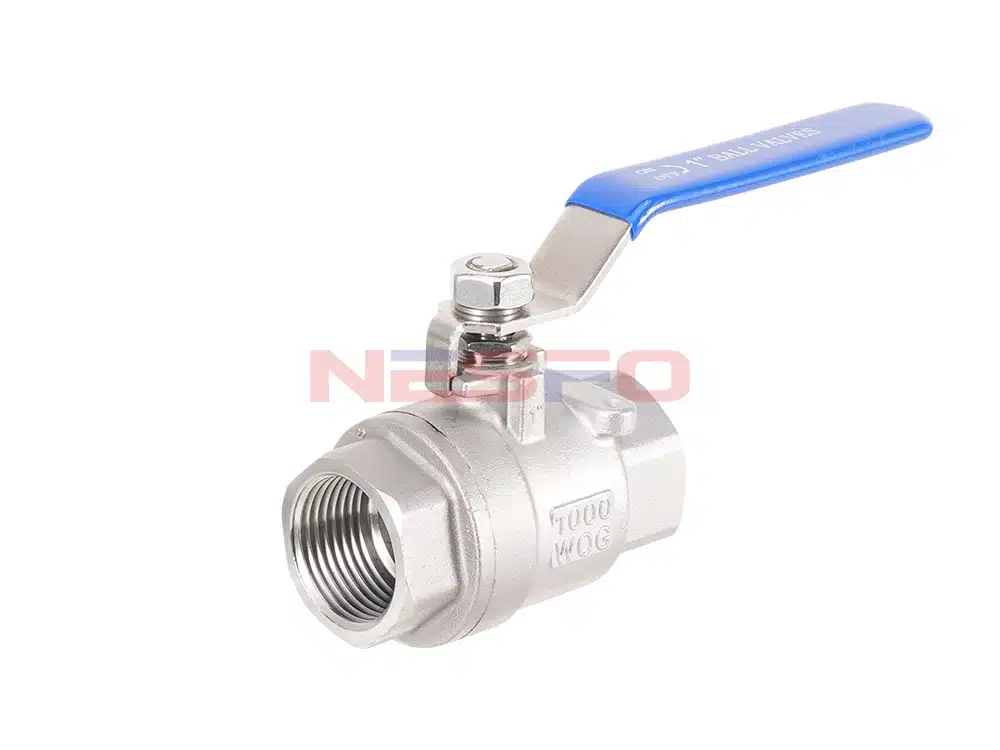

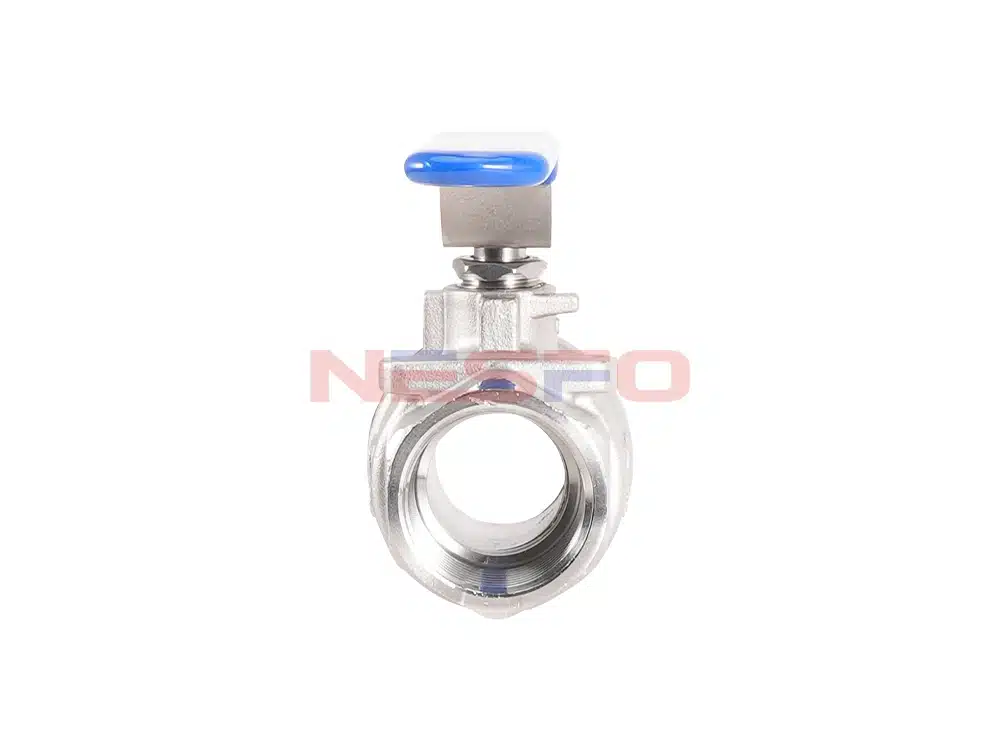

Q11F-16P two-piece ball valve is also called two-piece ball valve. Reasonable structure, beautiful modeling. The valve seat adopts elastic sealing structure, easy opening and closing, reliable sealing. The valve stem adopts the down-loading structure with inverted sealing When the valve cavity is abnormally pressurized, the valve stem will not be impacted. 90°switch positioning mechanism can be set up, and locks can be added as needed to prevent misoperation. Widely used in petroleum, chemical industry, metallurgy, electric power, urban construction and other fields, such as transporting oil, natural gas, chemicals, steam and other high-temperature, high-pressure fluids, as well as controlling various fluids and urban water supply, drainage and so on.
Product Features
- Low fluid resistance, with a resistance coefficient equivalent to that of a pipe segment of the same length.
- Simple structure, compact size, and lightweight.
- Tight and reliable, the current ball valve sealing surface materials are widely used in plastic, good sealing, in the vacuum system has also been widely used.
- Easy to operate, quick to open and close—simply rotate to transition from fully open to fully closed, facilitating remote control.
- Ball valves are easy to maintain due to their simple structure. The sealing rings are typically removable, making disassembly and replacement straightforward.
Product Parameters
Product Model | Q11F-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

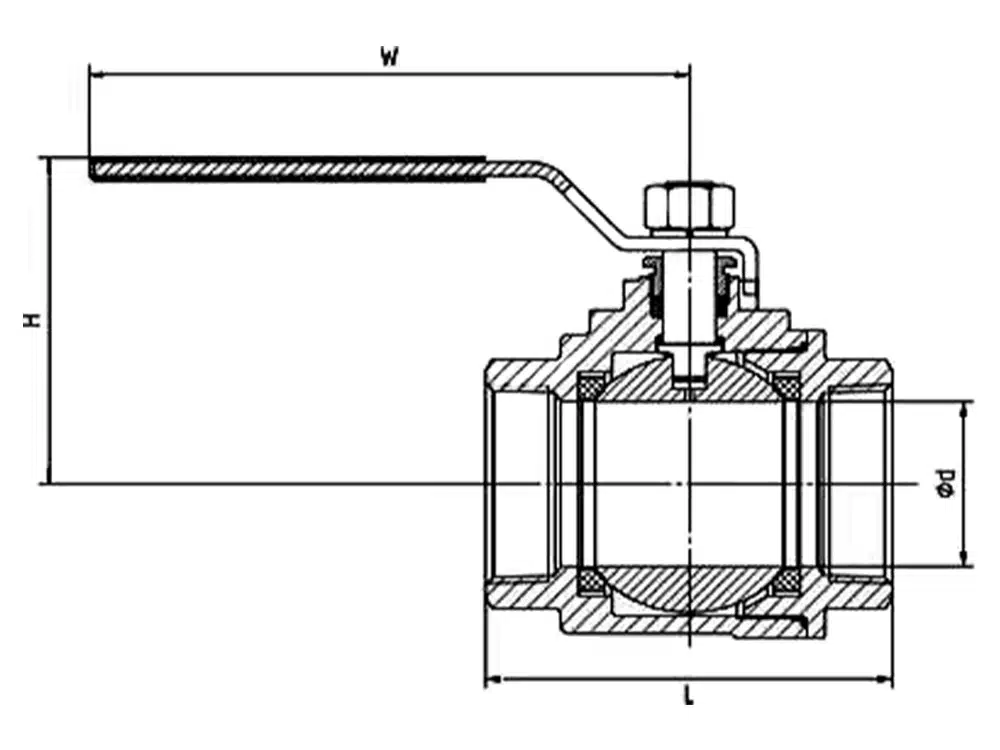

Product Size Reference
Nominal Diameter | φd | L | H | W |
DN8 | 11.5 | 50 | 54 | 100 |
DN10 | 16 | 51 | 54 | 100 |
DN15 | 19 | 54 | 61 | 100 |
DN20 | 24 | 62 | 67.5 | 120 |
DN25 | 30 | 75 | 75 | 140 |
DN32 | 39 | 84 | 79 | 150 |
DN40 | 44 | 95 | 84.6 | 180 |
DN50 | 56.5 | 106 | 96 | 180 |
DN65 | 72.5 | 144 | 126 | 250 |
DN80 | 84.5 | 170 | 135.5 | 250 |
DN100 | 110 | 204 | / | 250 |
