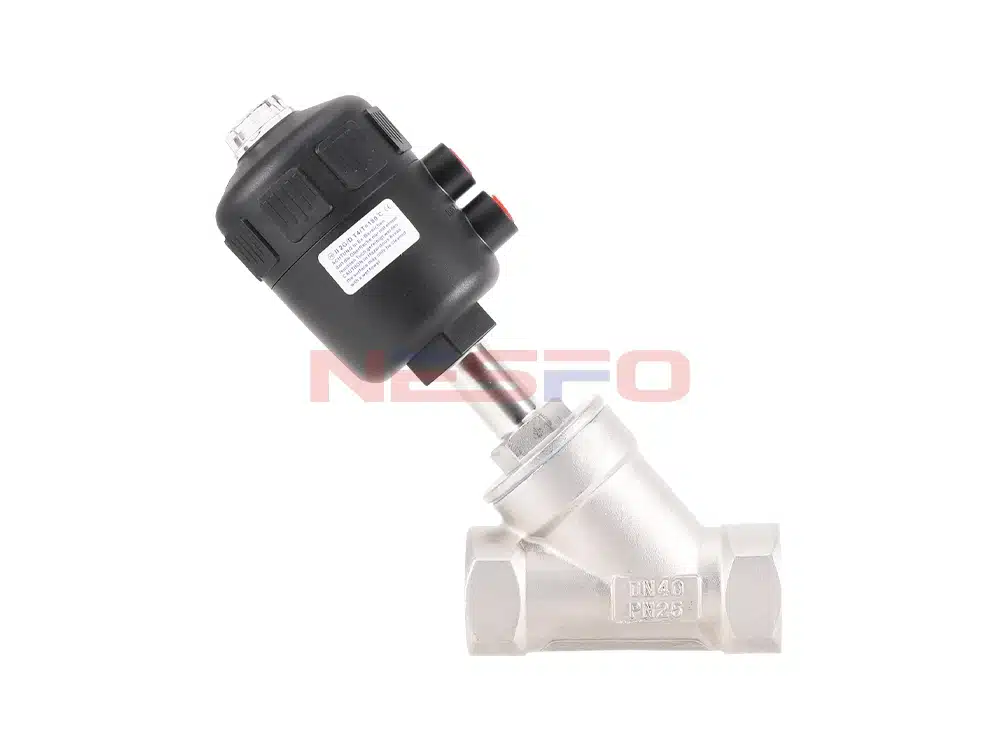

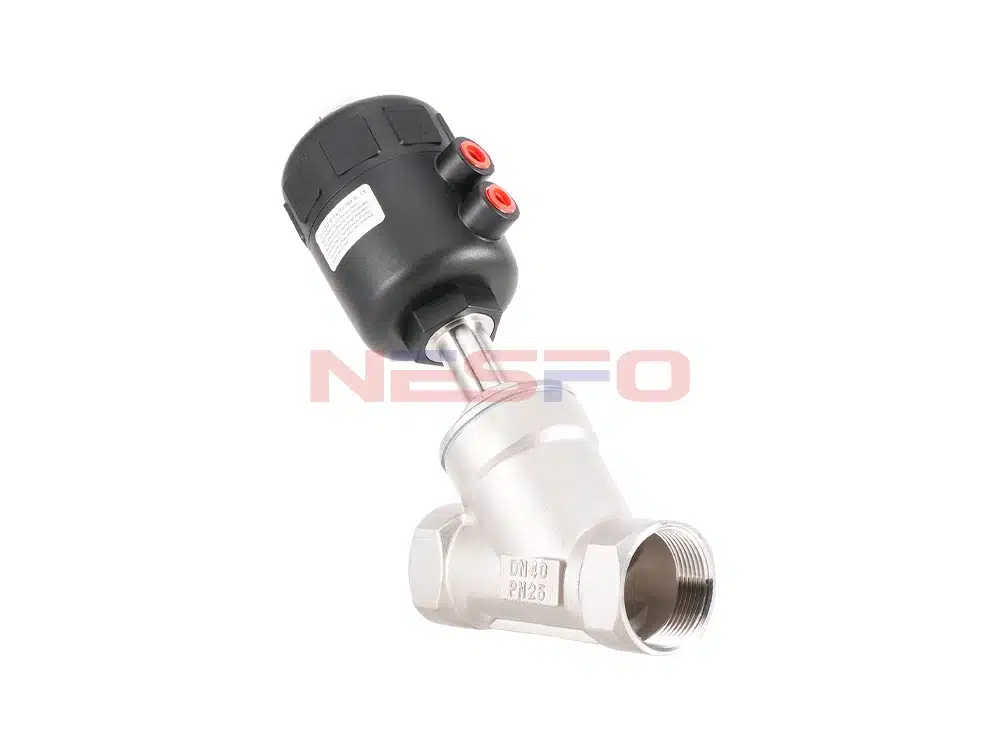

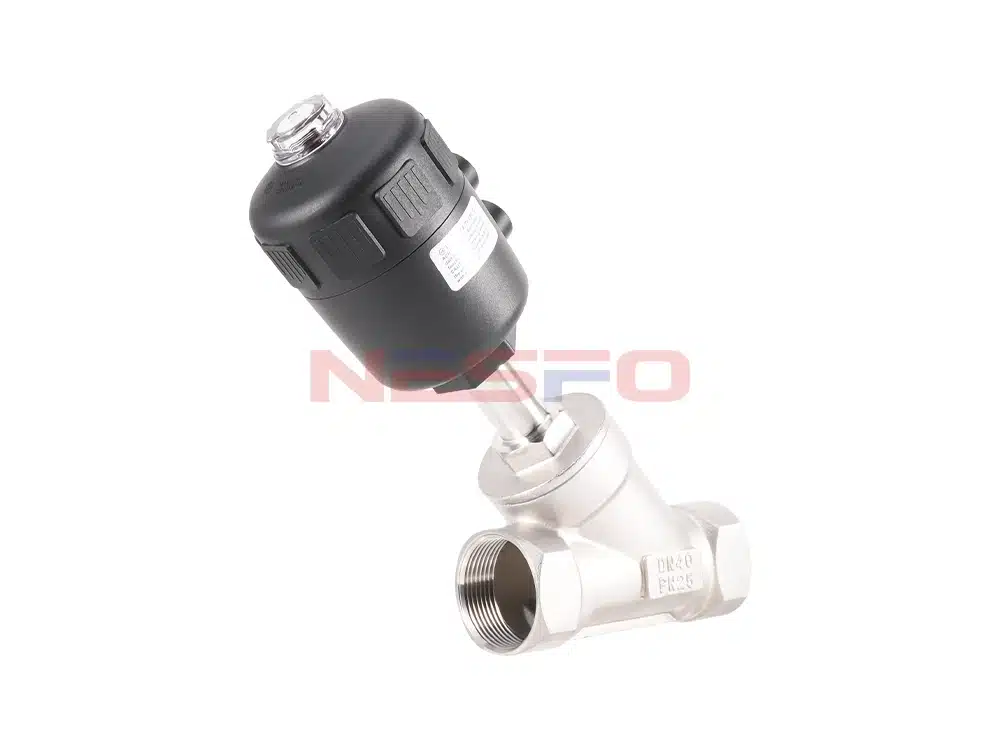

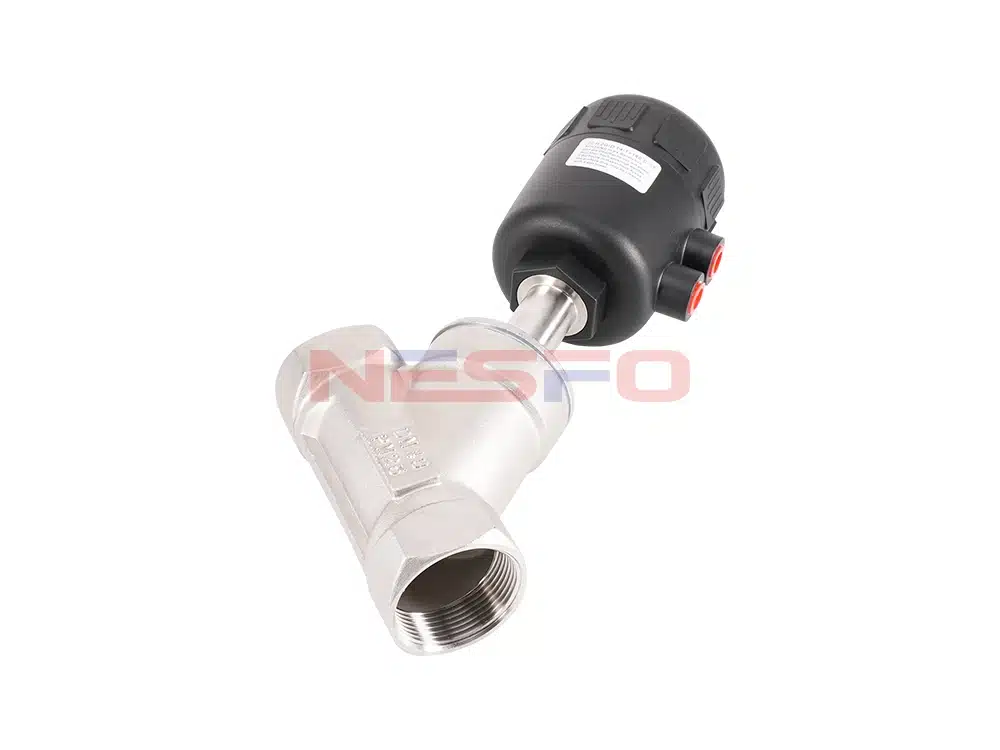

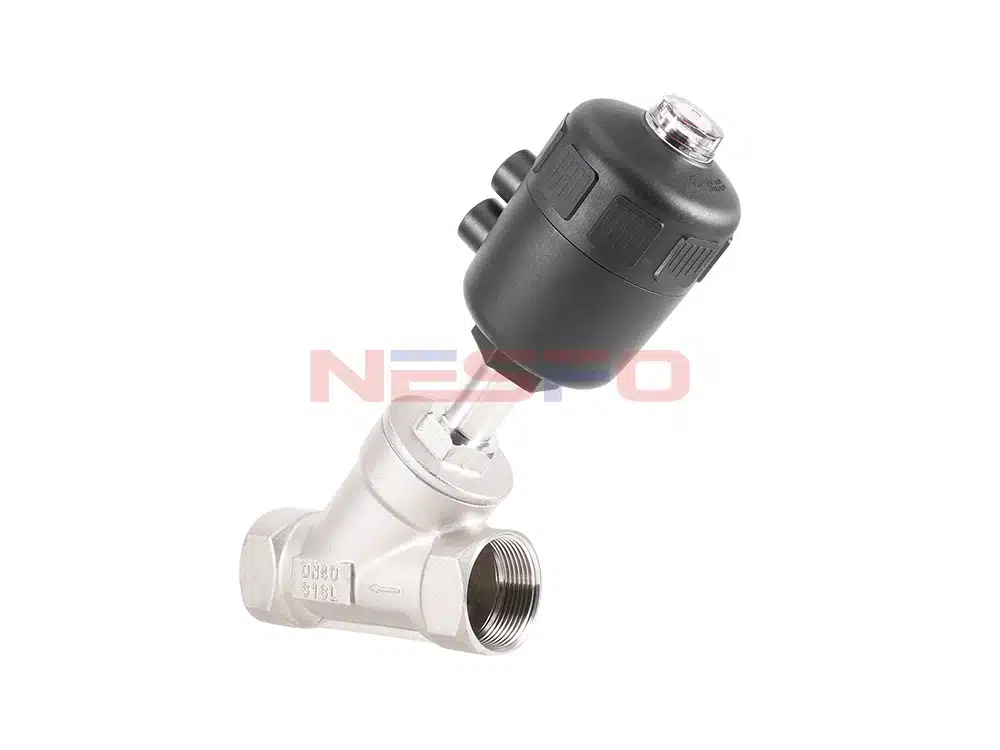

J615F-16P piston type pneumatic angle seat valve body is made of 304 stainless steel, and the main material of the cylinder is industrial resin polyamide (PA). It is widely used in a variety of industries for fluid control, including beer and beverage, textile printing, dyeing and bleaching, pharmaceutical and medical equipment, food processing, rubber machinery, organic and inorganic chemicals, cleaning and disinfection of high temperature sterilization, water treatment and other industries, the applicable medium for water, oil and gas, air and other pure and unadulterated or corrosive gas and liquid. Compared with other valves, it has the advantages of space-saving, responsive, safe to use, maintenance-free and long life.
Product Parameters
Product Model | J615F-16P |
Valve Body Material | 304 Stainless Steel |
Cylinder Material | Polyamide Resin |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

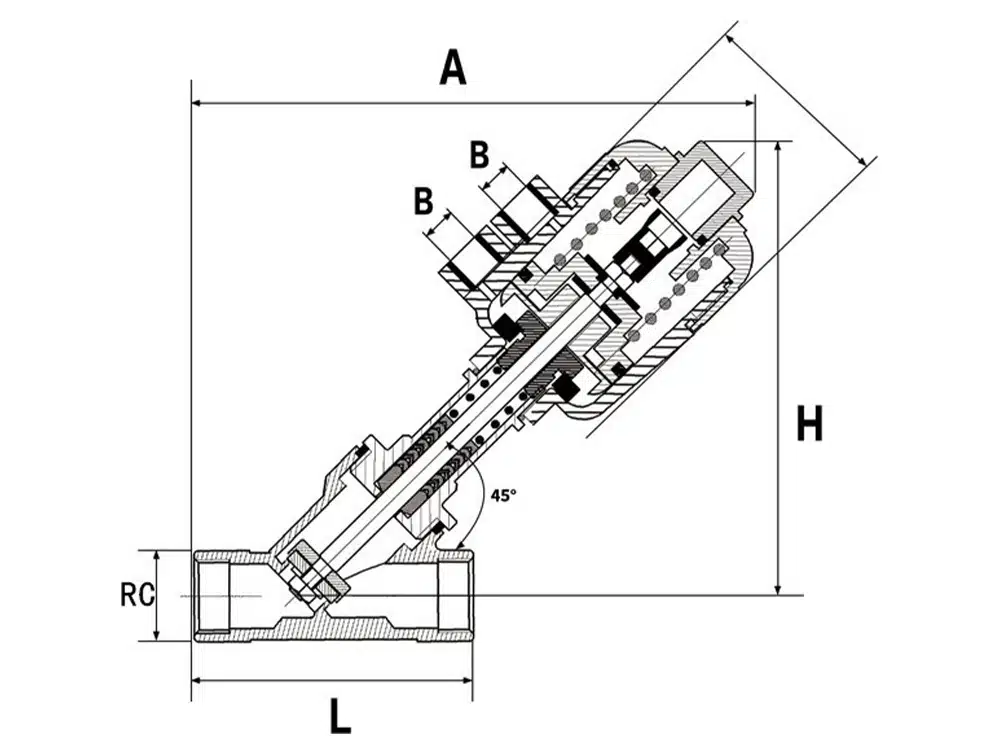

Product Size Reference
Nominal Diameter | Actuator mm | A | L | RC | B | H |
DN15 | 50 | 172 | 85 | 1/2 | G1/4 | 137 |
DN20 | 50 | 178 | 95 | 3/4 | G1/4 | 145 |
DN25 | 50 | 183 | 105 | 1 | G1/4 | 158 |
DN25D | 63 | 210 | 105 | 1 | G1/4 | 165 |
DN32 | 63 | 220 | 120 | 1-1/4 | G1/4 | 180 |
DN40 | 63 | 228 | 125 | 1-1/2 | G1/4 | 190 |
DN50 | 63 | 238 | 147 | 2 | G1/4 | 200 |
DN50D | 80 | 268 | 147 | 2 | G1/4 | 245 |
DN65 | 80 | 282 | 185 | 2-1/2 | G1/4 | 300 |
DN80 | 100 | 368 | 210 | 3 | G1/4 | 340 |
