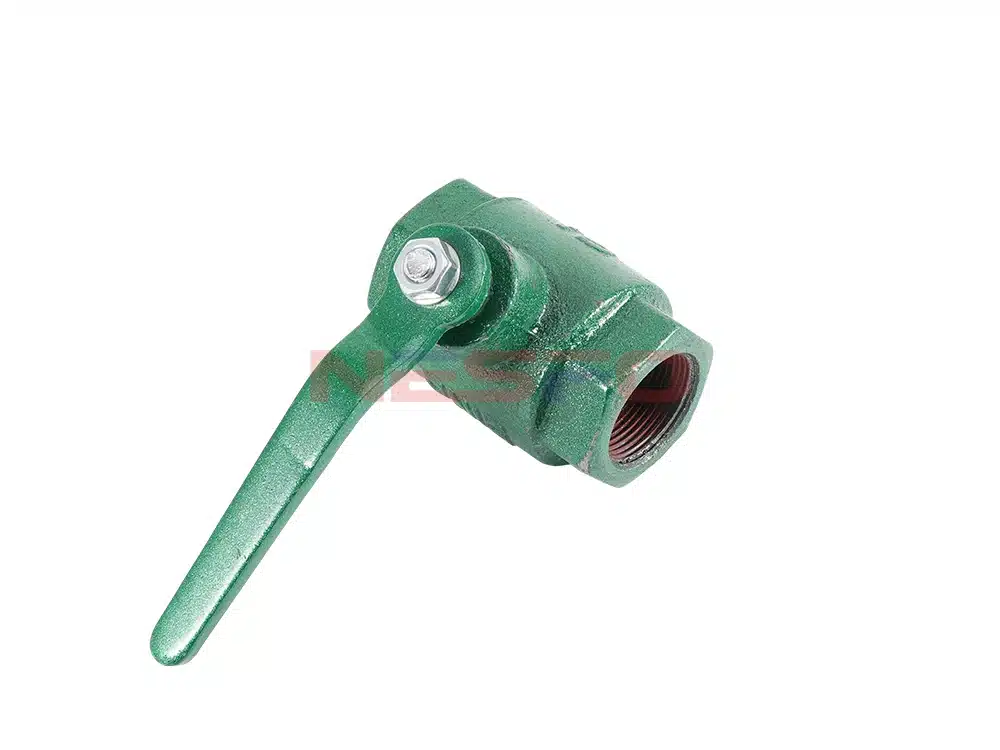

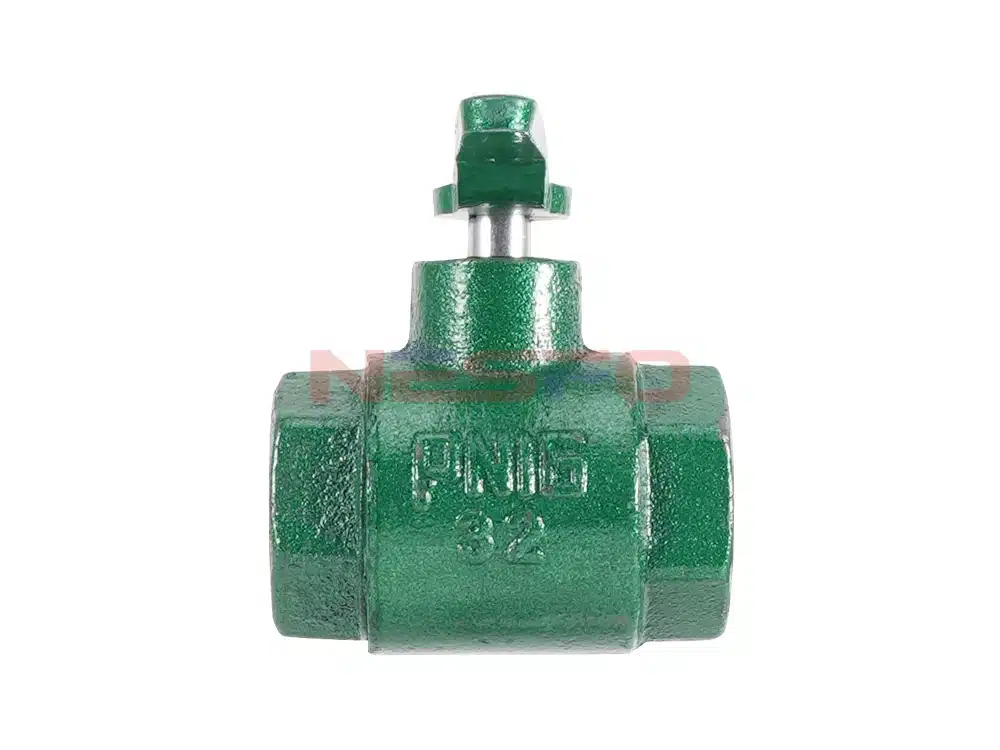

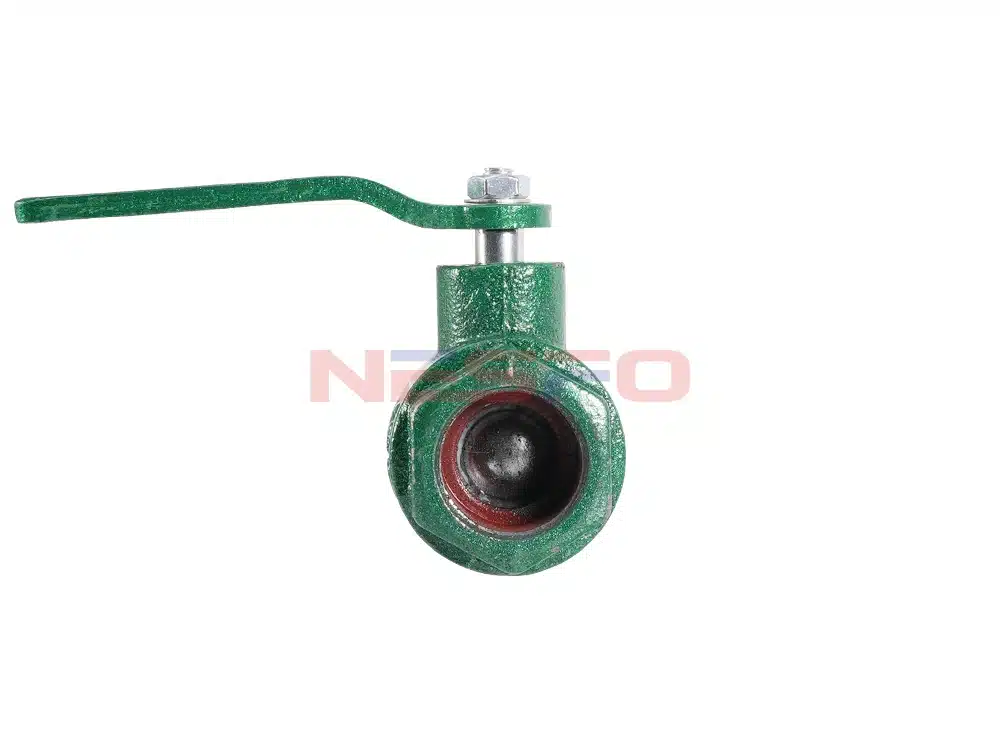

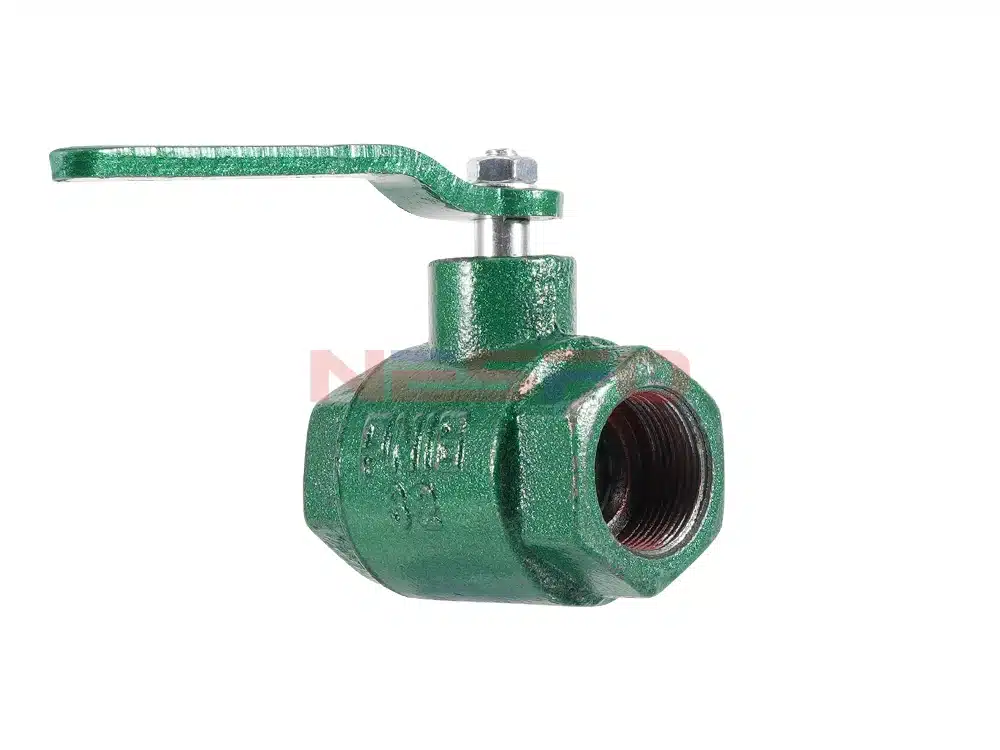

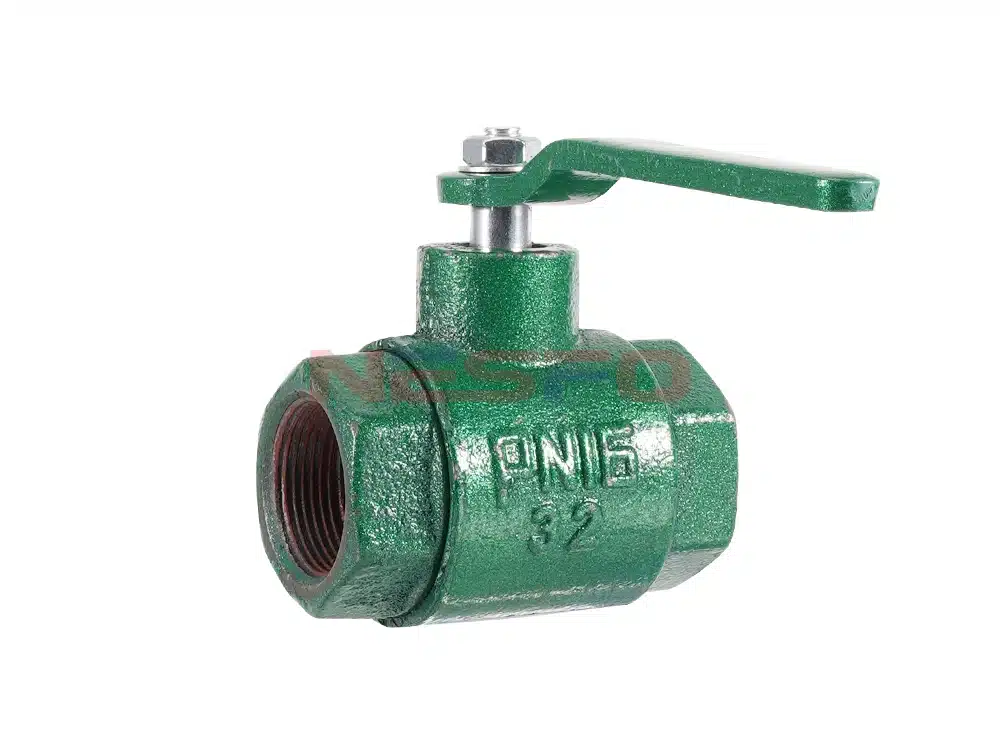

Q11F-16 cast iron silk button ball valve applications and tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems and other fluid pipeline as a connecting and disconnecting device.
Product Features
- Made of HT200 material, it exhibits excellent casting properties, resistance to friction and wear, and vibration absorption.
- The sealing material is made of polytetrafluoroethylene, ensuring excellent sealing performance for the product.
- The use of a disc valve stem significantly extends service life.
- Simple structure, easy operation, quick opening and closing, low fluid resistance.
Product Parameters
Product Model | Q11F-16 |
Valve Body Material | Gray Cast Iron |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water and so on |
Applicable Temperature | ≤80°C |

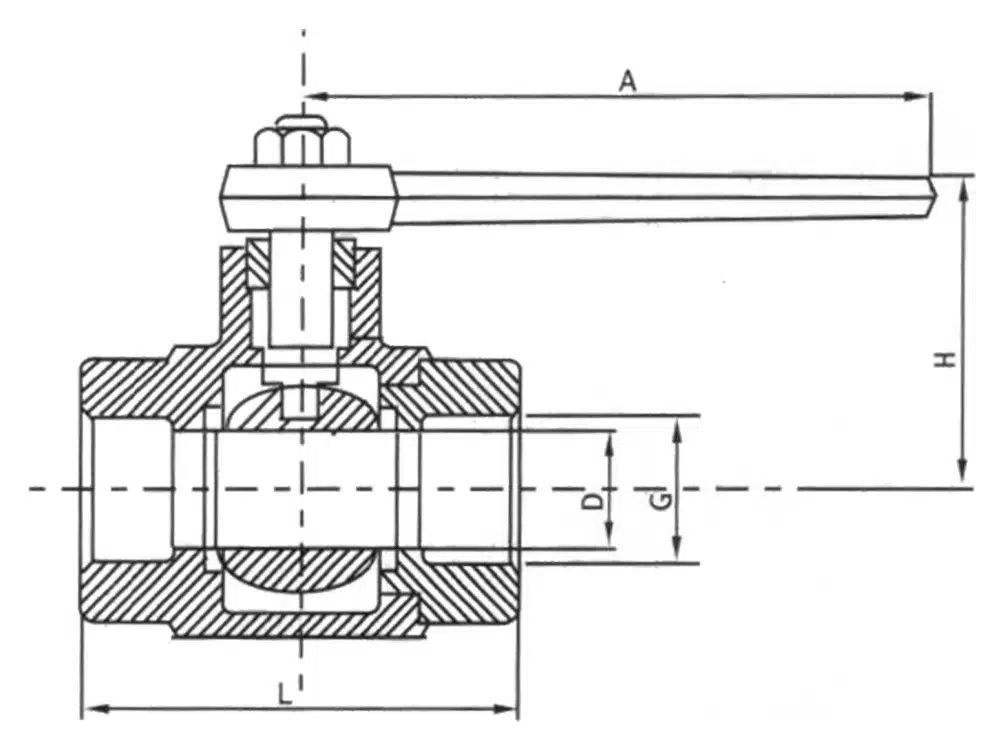

Product Size Reference
Nominal Diameter | L | D | A | H |
DN15 | 56 | 13 | 87 | 45 |
DN20 | 67 | 16 | 93 | 50 |
DN25 | 76 | 20 | 108 | 69 |
DN32 | 85 | 28 | 120 | 72 |
DN40 | 98 | 33 | 147 | 70 |
DN50 | 107 | 40 | 159 | 85 |
