Z15W-16T brass wire-button gate valve is the closing member (gate) along the channel axis of the vertical direction of movement of the valve, in the pipeline is mainly used as a cut off medium, that is, full open or full closed use.
Product Features
Z15W-16T brass wire-button gate valve is aging-resistant, corrosion-resistant, seals can be replaced, reliable sealing performance, small operating torque, easy to operate, light weight and small size, maintenance is very convenient.
Product Parameters
Product Model | Z15W-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

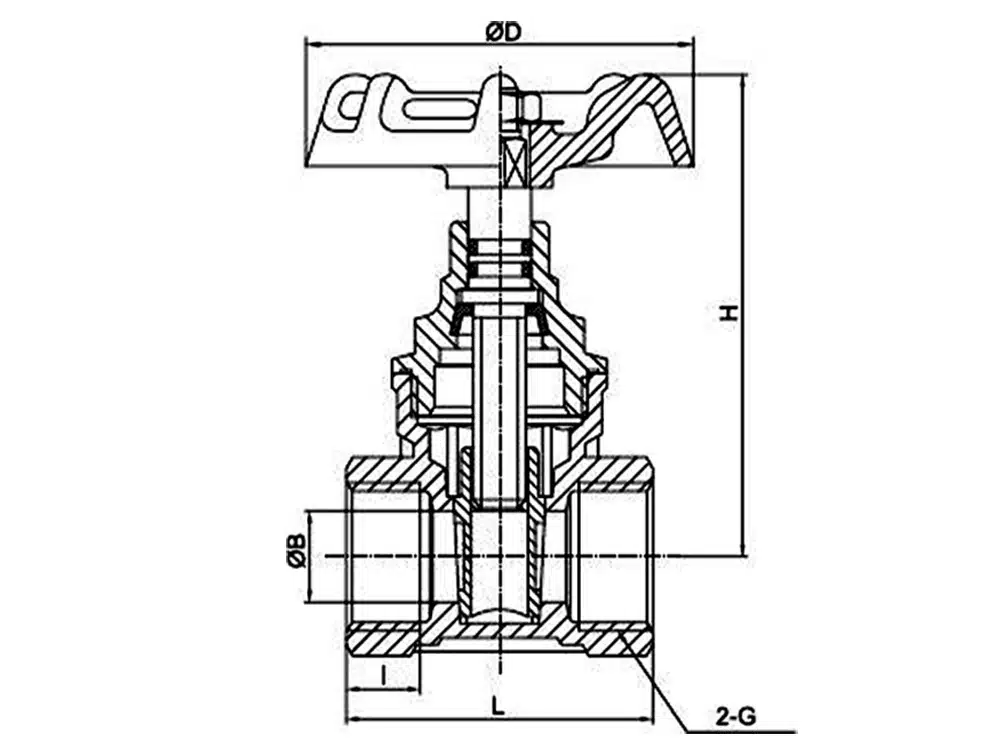

Product Size Reference
Nominal Diameter | SIZE | L | B | H | D |
DN15 | 1/2 | 41 | 12.5 | 67.5 | 53 |
DN20 | 3/4 | 44 | 16.5 | 75 | 53 |
DN25 | 1 | 51 | 20.5 | 80 | 57.5 |
DN32 | 1-1/4 | 57 | 27 | 96.5 | 72 |
DN40 | 1-1/2 | 58 | 33 | 111.5 | 72 |
DN50 | 2 | 66 | 43 | 126.5 | 78 |
DN65 | 2-1/2 | 73 | 54 | 156 | 97 |
DN80 | 3 | 80 | 65 | 180 | 108 |
DN100 | 4 | 95 | 86.5 | 226.5 | 126 |
