J41H-16C cast steel flange globe valve opening and closing parts are cylindrical valve flap, sealing surface is flat or conical, the valve flap along the center line of the fluid for linear movement.J41H-16C globe valve is only suitable for full open and full closed, generally not used to regulate the flow rate, customized to allow for regulation and throttling.
Product Features
- Simple in structure, it is relatively easy to manufacture and maintain.
- Short working stroke, brief opening and closing time.
- Excellent sealing performance, minimal friction between sealing surfaces, and extended service life.
Product Parameters
Product Model | J41H-16C |
Valve Body Material | Cast Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Steam, Oil, etc. |
Applicable Temperature | ≤250°C |

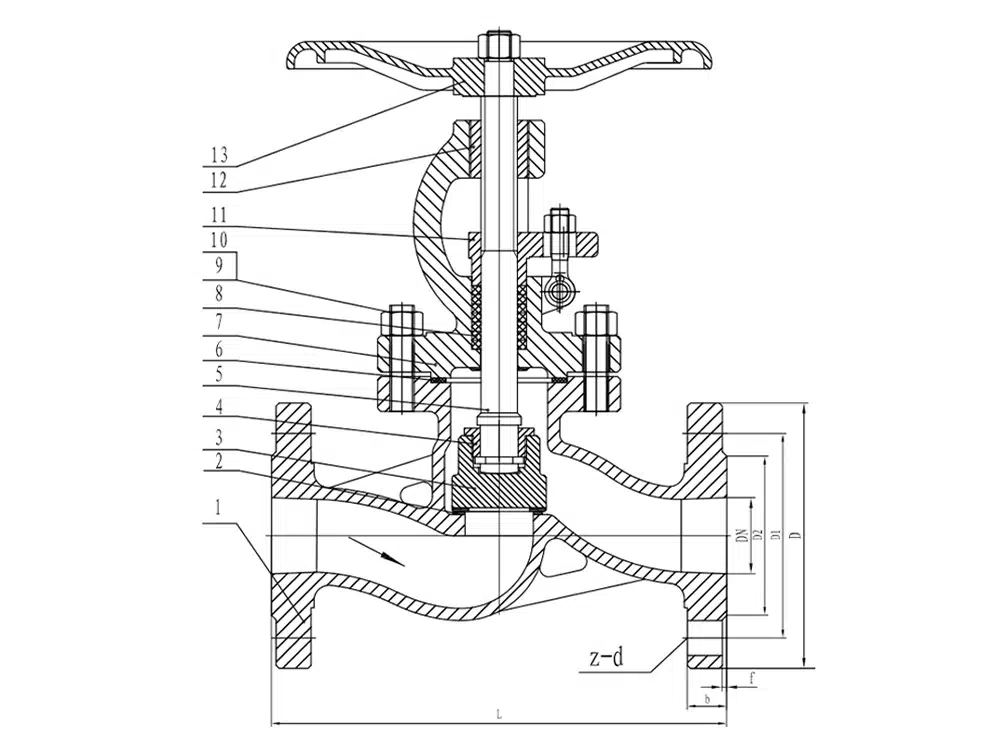

Product Size Reference
DN | L | D | D1 | D2 | b | f | z-d |
15 | 130 | 95 | 65 | 45 | 16 | 2 | 4-14 |
20 | 150 | 105 | 75 | 58 | 18 | 2 | 4-14 |
25 | 160 | 115 | 85 | 68 | 18 | 2 | 4-14 |
32 | 180 | 140 | 100 | 78 | 18 | 2 | 4-18 |
40 | 200 | 150 | 110 | 88 | 18 | 2 | 4-18 |
50 | 230 | 165 | 125 | 102 | 18 | 2 | 4-18 |
65 | 290 | 185 | 145 | 122 | 18 | 2 | 4-18 |
80 | 310 | 200 | 160 | 138 | 20 | 2 | 8-18 |
100 | 350 | 220 | 180 | 158 | 20 | 2 | 8-18 |
125 | 400 | 250 | 210 | 188 | 22 | 2 | 8-18 |
150 | 480 | 285 | 240 | 212 | 22 | 2 | 8-22 |
200 | 600 | 340 | 295 | 268 | 24 | 2 | 12-22 |
250 | 650 | 405 | 355 | 320 | 26 | 2 | 12-26 |
300 | 750 | 460 | 410 | 378 | 28 | 2 | 12-26 |
350 | 850 | 520 | 470 | 438 | 30 | 2 | 16-26 |
400 | 950 | 580 | 525 | 490 | 32 | 2 | 16-30 |
450 | 1050 | 640 | 585 | 550 | 40 | 2 | 20-30 |
500 | 1150 | 715 | 650 | 610 | 44 | 2 | 20-33 |
