Flexible rubber joint, also known as rubber joint, shock absorber, pipe shock absorber, shock absorber, soft joint, etc., is a kind of pipe joint with high elasticity, high airtightness, media resistance and weather resistance. Flexible rubber joint is a hollow rubber product that plays the role of flexible connection between metal pipes. Since the flexible rubber joint has good comprehensive performance, it is widely used in chemical industry, construction, water supply, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power and other basic engineering.
Product Features
- Compact size, lightweight, excellent elasticity, and easy installation and maintenance.
- During installation, it can accommodate lateral, axial, and angular displacement, and is not restricted by misaligned pipes or non-parallel flanges.
- During operation, it reduces structural noise transmission and offers strong vibration absorption capabilities.
Product Parameters
Product Model | KXT-16P |
Rubberized | NBR/EPDM |
Flange Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤80°C |

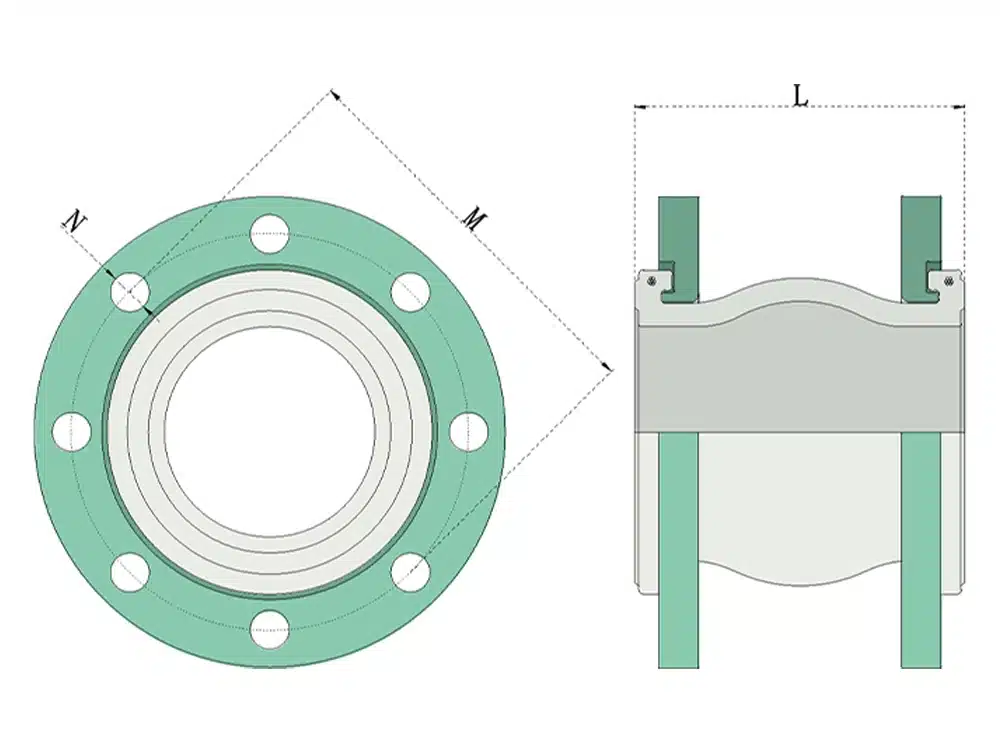

Product Size Reference
Nominal Diameter | L | M | N |
DN25 | 95 | 85 | 4 |
DN32 | 95 | 100 | 4 |
DN40 | 95 | 110 | 4 |
DN50 | 105 | 125 | 4 |
DN65 | 115 | 145 | 4 |
DN80 | 135 | 160 | 8 |
DN100 | 150 | 180 | 8 |
DN125 | 165 | 210 | 8 |
DN150 | 180 | 240 | 8 |
DN200 | 210 | 295 | 12 |
DN250 | 230 | 355 | 12 |
DN300 | 245 | 410 | 12 |
DN350 | 255 | 470 | 16 |
DN400 | 255 | 525 | 16 |
DN450 | 255 | 585 | 20 |
DN500 | 260 | 650 | 20 |
DN600 | 260 | 770 | 20 |
