Q81F-10P quick release sanitary ball valve is a kind of ball valve widely used in food, pharmaceutical, chemical and other industries. It is characterized by simple structure, easy operation, good sealing, etc. It is an important equipment to ensure the sanitary requirements of industrial production.
Product Features
- Clamp connections are easy to assemble and disassemble, making them suitable for applications requiring frequent cleaning.
- Easy to install, it can be mounted in any direction at any point along the pipeline.
- The valve body features a smooth and flat internal passage, enabling the conveyance of viscous fluids, slurries, and solid particles.
- Due to the excellent self-lubricating properties of materials such as polytetrafluoroethylene, friction loss with the ball is minimal, resulting in a long service life for ball valves.
Product Parameters
Product Model | Q81F-10P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.0Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤120°C |

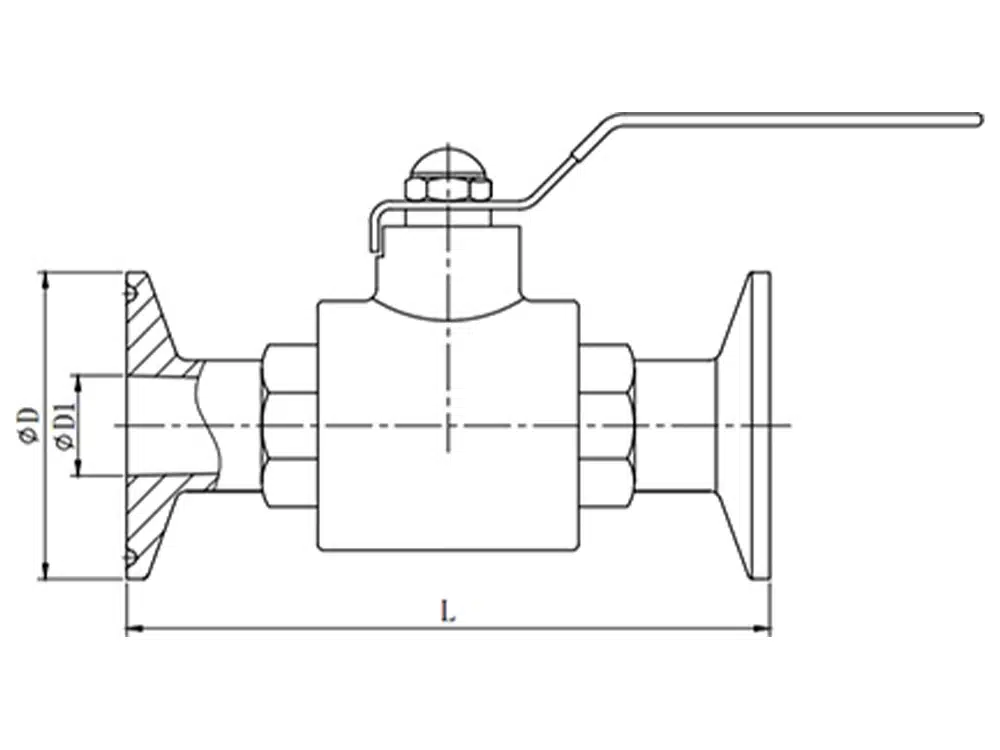

Product Size Reference
Tube Outer Diameter | D | D1 | L |
φ19 | 50.5 | 16.5 | 105 |
φ25 | 50.5 | 22 | 117 |
φ32 | 50.5 | 28.5 | 124 |
φ38 | 50.5 | 35 | 140 |
φ45 | 64 | 41 | 150 |
φ51 | 64 | 47.5 | 158 |
φ57 | 77.5 | 52 | 165 |
φ63 | 77.5 | 58.2 | 176 |
φ76 | 91 | 72 | 200 |
φ89 | 106 | 84.8 | 240 |
φ102 | 119 | 98.3 | 260 |
φ108 | 119 | 129 | 270 |
