Q41F-16CCast steel flange ball valveMainly used for cutting off or connecting the medium in the pipeline, can also be used for fluid regulation and control.Cast Steel Ball ValvesSuitable for a variety of media such as water, steam, oil and acid and alkali media.

产品特性

  • 在各种阀门中，ball valveThe flow resistance is small, full bore ball valves open, the ball channel, the valve body channel and the connecting pipe diameter is equal and into a diameter, the medium can flow through almost no loss.
  • 球阀旋转90°即可全关全开，启闭迅速。与相同规格的gate valve,shut-off valveComparison, ball valve small size, light weight, easy pipeline installation.

Product Parameters

产品型号

Q41F-16C

阀体材质

铸钢

公称压力

≤1.6Mpa

适用介质

水、蒸汽、油品

适用温度

≤150°C

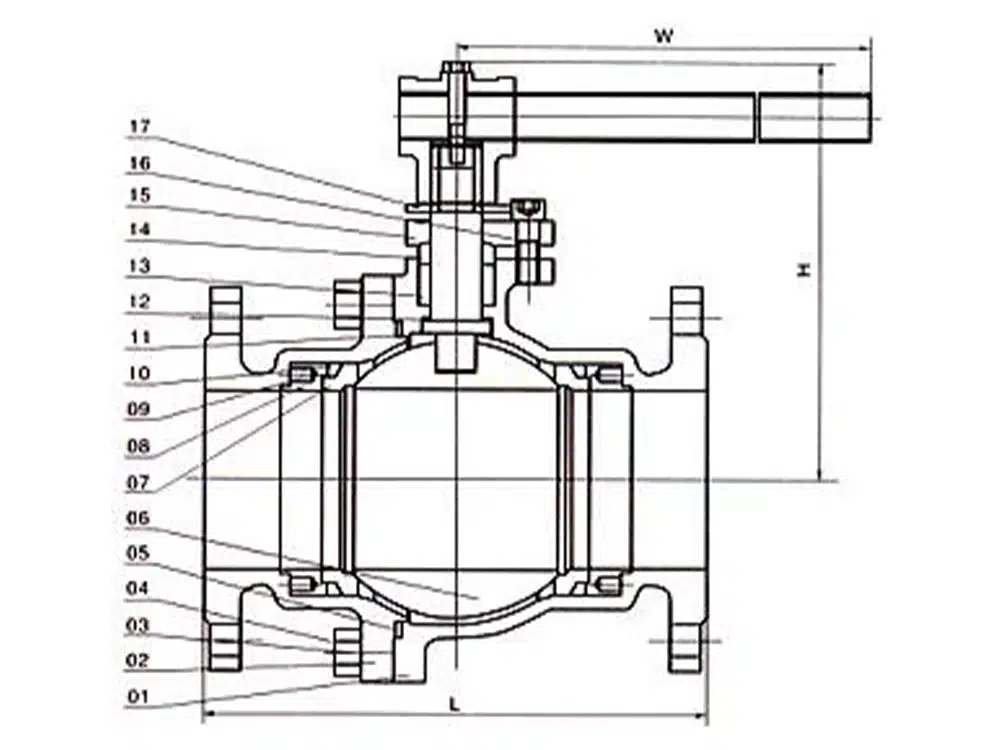

Product Size Reference

通径

L

D

D1

D2

b

n-Фd

H

L0

DN15

130

95

65

45

14

4-14

78

140

DN20

140

105

75

55

14

4-14

84

160

DN25

150

115

85

65

14

4-14

95

180

DN32

165

135

100

78

16

4-18

150

250

DN40

180

145

110

85

16

4-18

150

300

DN50

200

160

125

100

18

4-18

170

350

DN65

220

180

145

120

20

4-18

195

350

DN80

250

195

160

135

20

8-18

215

400

DN100

280

215

180

155

20

8-18

250

500

DN125

320

245

210

185

22

8-18

265

600

DN150

360

280

240

210

24

8-23

270

800

DN200

400

335

295

265

26

12-23

330

1200
