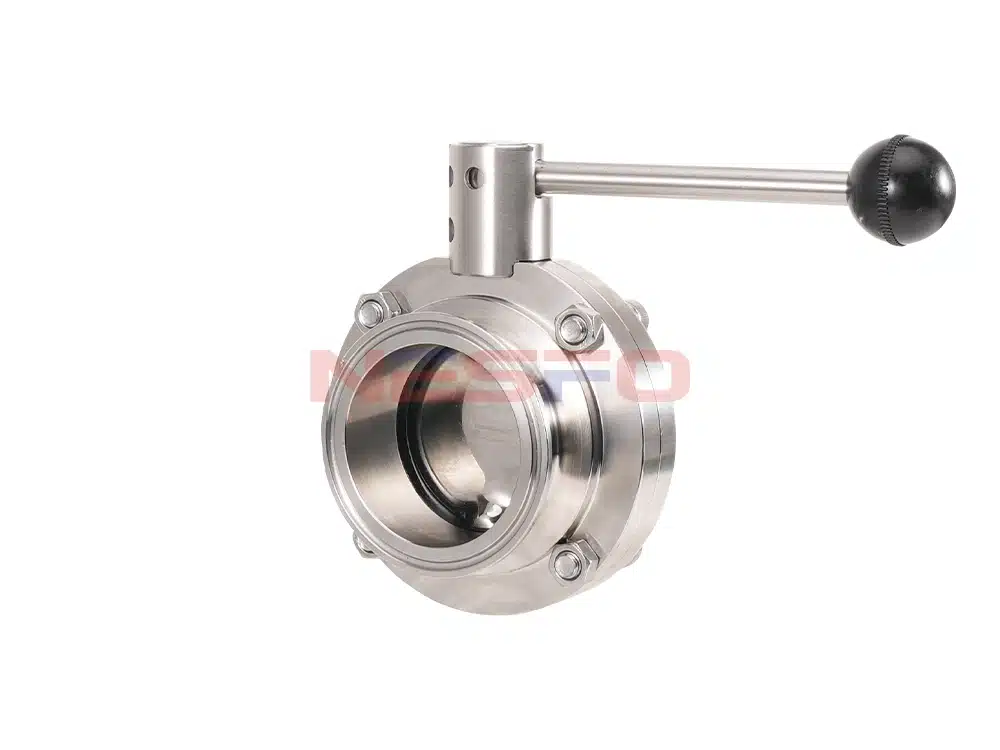

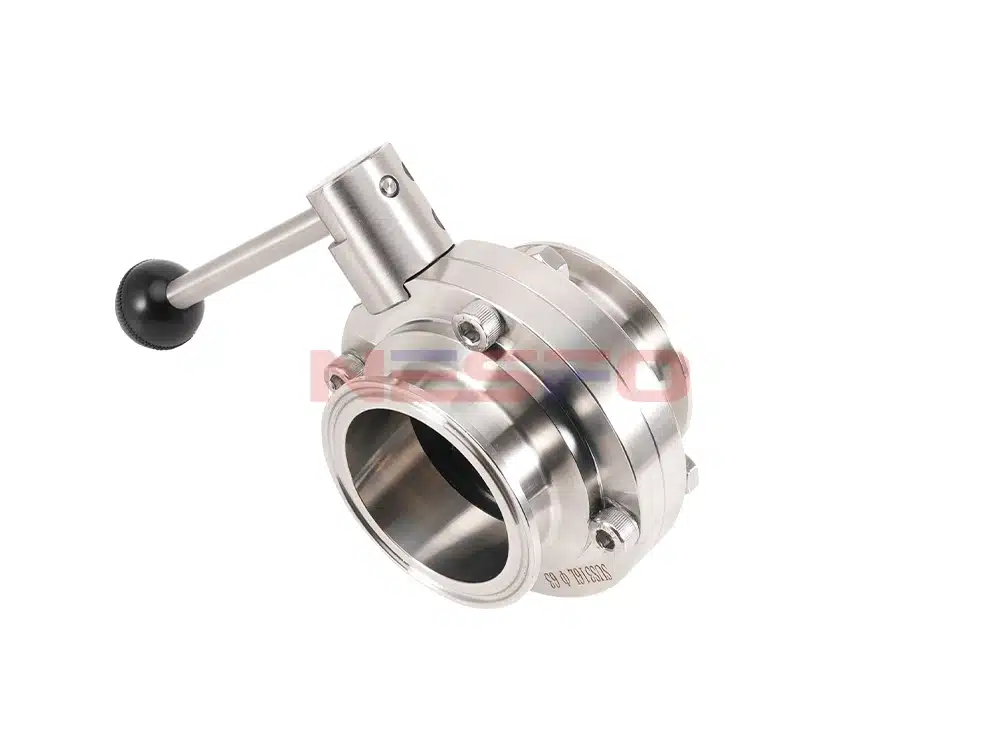

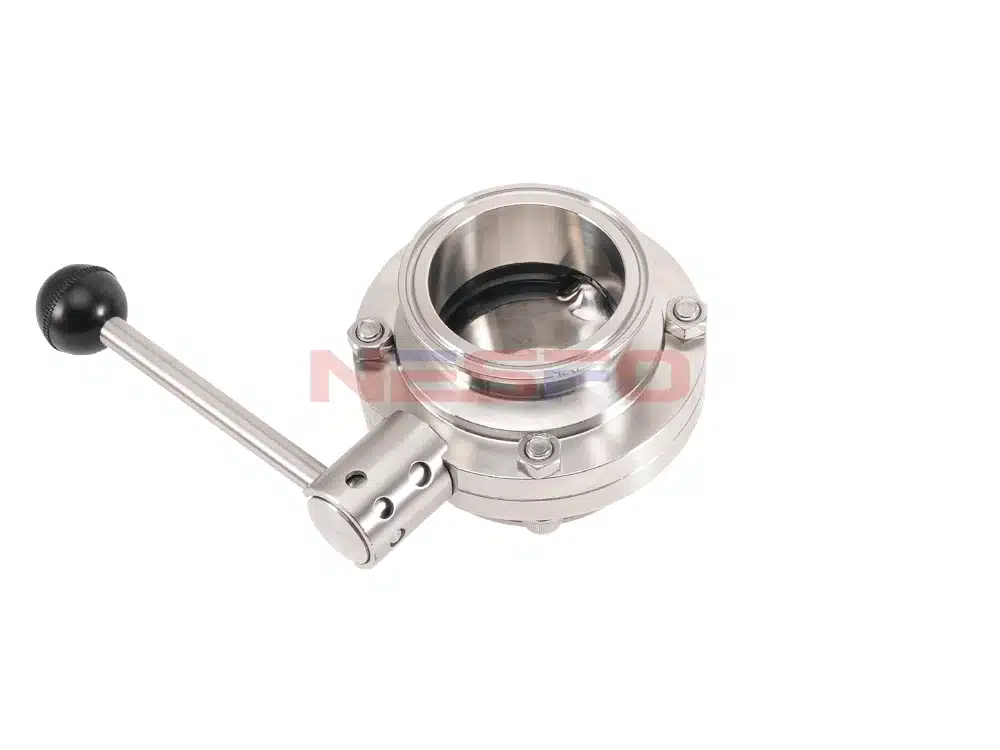

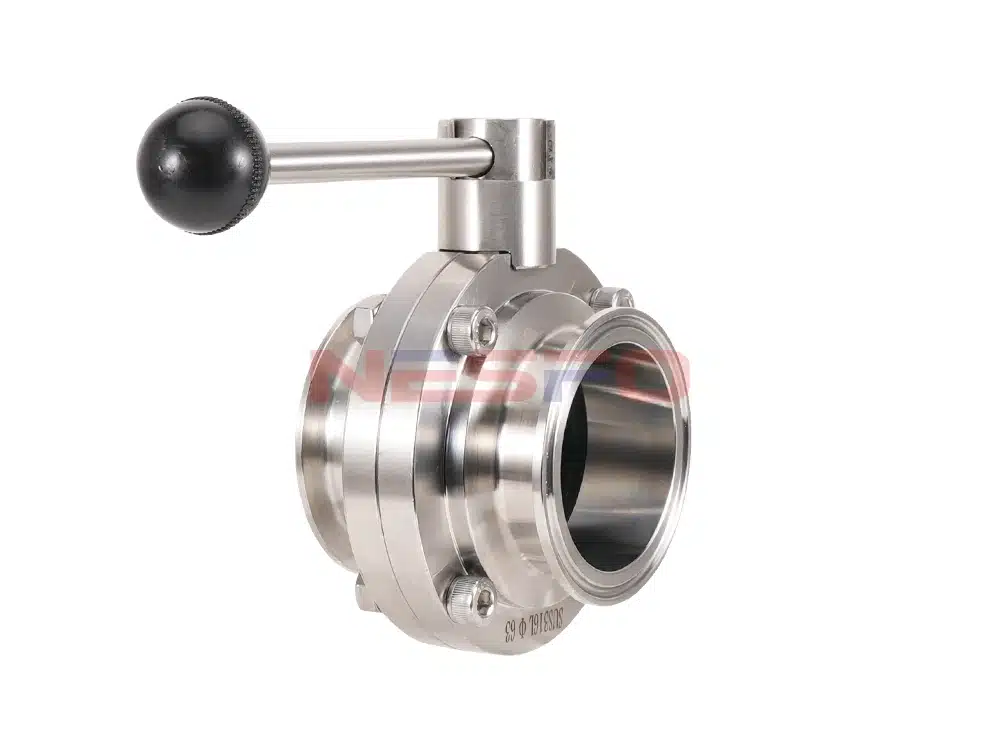

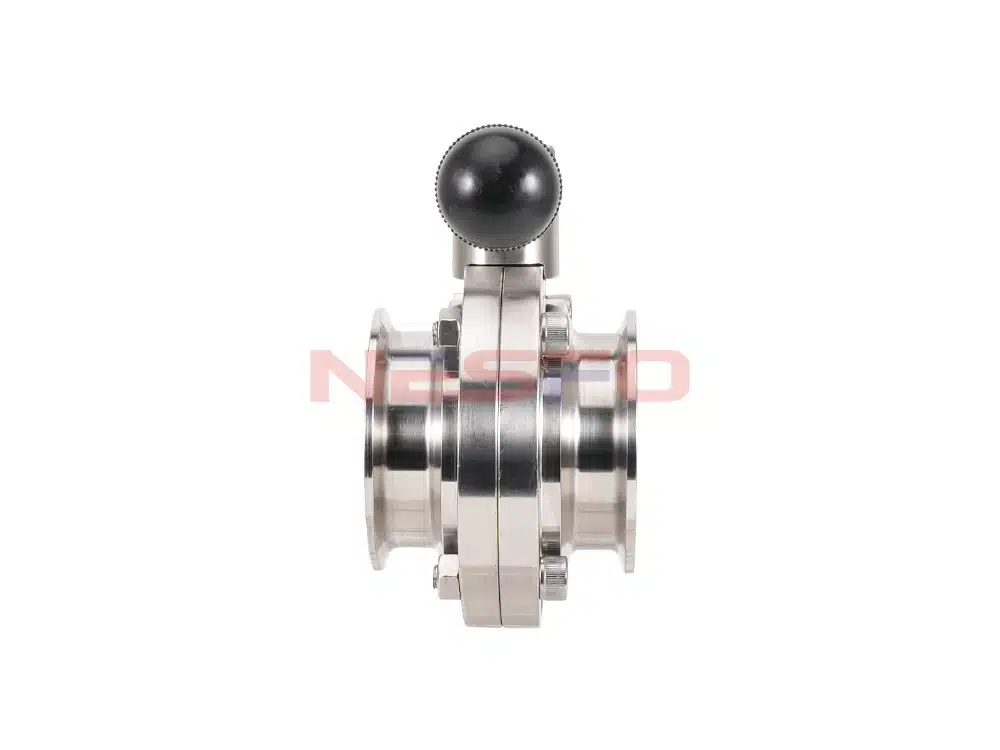

Sanitary quick release butterfly valve is a kind of valve specially designed for sanitary field, mainly used for controlling fluid flow and flow rate. Sanitary quick release butterfly valve is characterized by compact structure, light weight, rapid opening and closing, corrosion resistance, easy cleaning, good sealing performance, and convenient installation and disassembly. Its valve body adopts standard electronic polishing, smooth surface, no dead angle design, will not produce potential pollution, can effectively prevent bacterial growth, to meet the sanitary production requirements. Widely used in food, pharmaceutical, cosmetic, clean steam, wine, beverage, biochemical industry and other process control occasions.
Product Parameters
Product Model | D81X-10P |
Valve Body Material | 304 Stainless Steel |
Valve Plate Material | 304 Stainless Steel |
Nominal Pressure | ≤1.0Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Applicable Temperature | ≤80°C |
Product Size Reference
Tube Outer Diameter | D1 | A2 | Dn | H | H1 | J |
Ф19 | 50.5 | 66 | 16 | 39 | 35 | 115 |
Ф25 | 50.5 | 66 | 22 | 39 | 35 | 115 |
Ф32 | 50.5 | 66 | 29 | 39 | 35 | 115 |
Ф38 | 50.5 | 66 | 35 | 39 | 35 | 115 |
Ф45 | 64 | 70 | 42 | 44 | 35 | 115 |
Ф51 | 64 | 70 | 48 | 46.5 | 35 | 115 |
Ф57 | 77.5 | 76 | 53 | 52.5 | 35 | 115 |
Ф63 | 77.5 | 76 | 59 | 55 | 35 | 115 |
Ф76 | 91 | 76 | 72 | 62 | 35 | 115 |
Ф89 | 106 | 80 | 85 | 70 | 35 | 145 |
Ф102 | 119 | 86.5 | 98 | 77.5 | 35 | 145 |
Ф108 | 119 | 86.5 | 104 | 77.5 | 35 | 145 |
Ф114 | 130 | 86.5 | 110 | 80 | 35 | 170 |
Ф133 | 145 | 100 | 129 | 84 | 35 | 210 |
Ф159 | 183 | 110 | 154 | 90 | 35 | 210 |
Ф204 | 217 | 110 | 198 | 112 | 35 | 218 |
Ф219 | 233.5 | 110 | 213 | 120 | 35 | 218 |
