Q71F-16PClamped thin ball valvesThe valve is connected between two pipe flanges with double-headed bolts, and the handle can be opened and closed quickly by rotating only 90°, which is easy to operate. Whenball valveIn the open position, the spool has no resistance, so the pressure drop through the valve is very small, so it has better flow control characteristics. It is characterized by short structure length, small volume, light weight, flexible opening and closing, and convenient installation. Widely used in petroleum, chemical, metallurgy, pharmaceutical, food, power station, light industry and other various fields.

Product Parameters

产品型号

Q71F-16P

阀体材质

304不锈钢

公称压力

≤1.6Mpa

适用介质

水、蒸汽、油品

适用温度

≤150°C

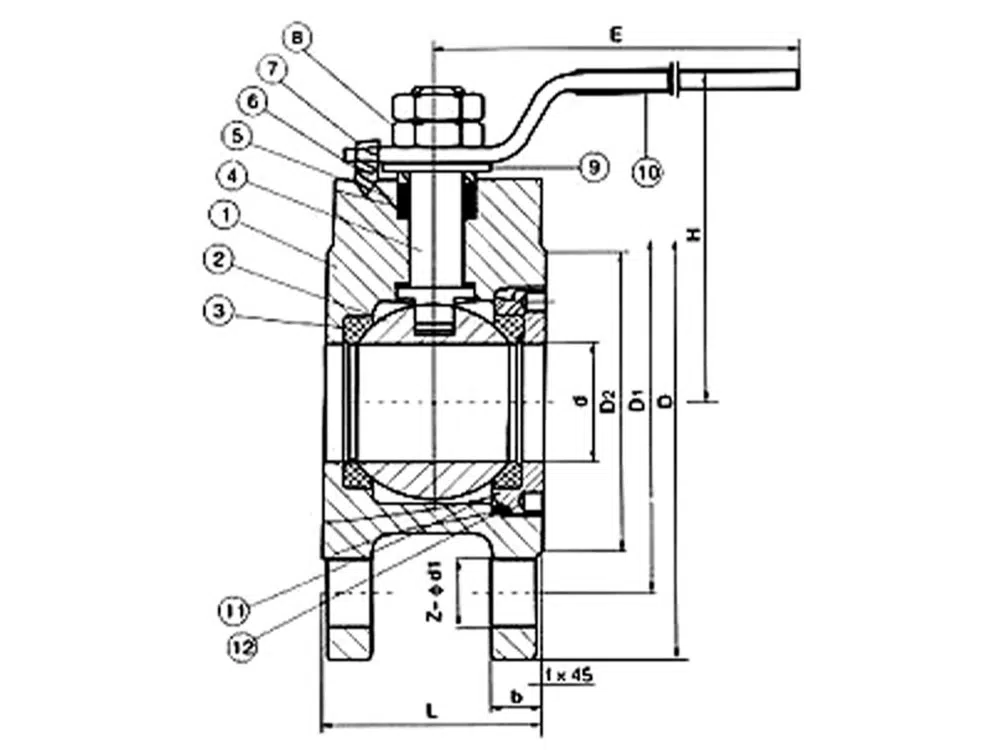

Product Size Reference

通径

L

D

D1

D2

d

H

E

b

f

Z-d1

DN15

35

95

65

45

15

62

110

14

2

4-M12

DN20

38

105

75

55

17

70

125

14

2

4-M12

DN25

45

115

85

65

24

79

135

16

2

4-M12

DN32

55

135

100

78

30

86

150

16

3

4-M16

DN40

62

145

110

85

36

92

150

18

3

4-M16

DN50

72

160

125

100

46

102

180

20

3

4-M16

DN65

95

180

145

120

57

158

250

22

3

4-M16

DN80

120

195

160

135

73

172

300

24

3

8-M16

DN100

140

215

180

155

90

187

350

24

3

8-M16

DN125

165

245

210

185

110

200

650

26

3

8-M16

DN150

195

285

240

210

145

240

840

26

3

8-M20

DN200

270

335

295

265

190

278

1000

28

3

12-M20
